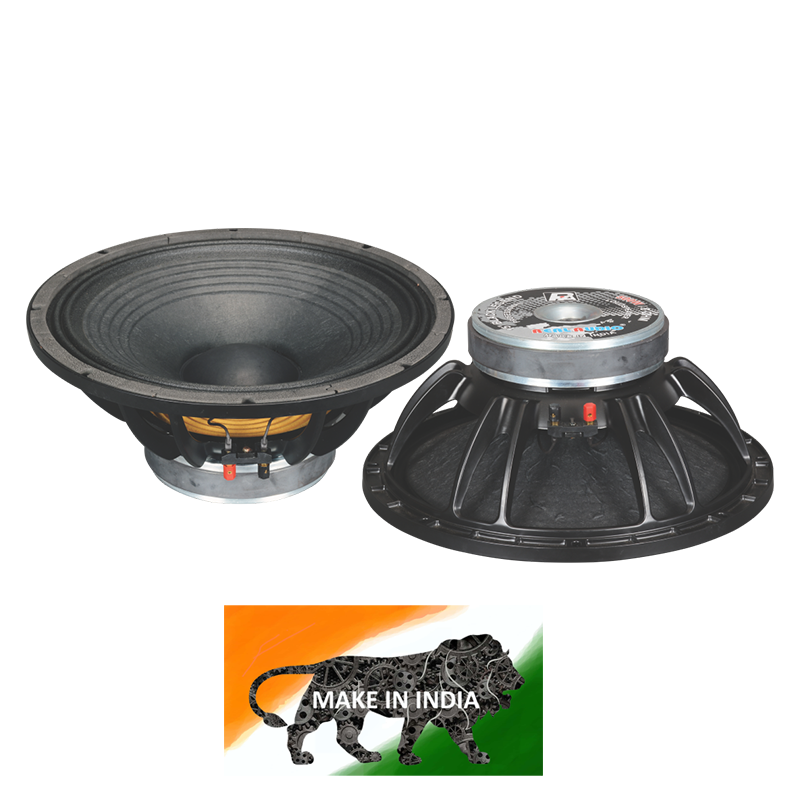

MODEL: BL-15/500 15”
Nominal Diameter :380 mm (15 in)
Nominal Impedance :8 ohm
Minimum Impedance :6.2 ohm
Continuous Power Handling :900 W (Peak)
Nominal Power handling (AES) :500 W (AES)
Sensitivity ( 1W/1m) :98 dB
Frequency Range:40-3500 Hz
Voice Coil Diameter: 76.2 mm (3 in)
Winding Material: Copper
Former Material: Glass Fiber
Magnet Material: Ceramic Ring
Winding Depth: 24 mm
Magnetic Gap Depth: 12 mm (0.5 in)
Flux Density: 1.1 T
