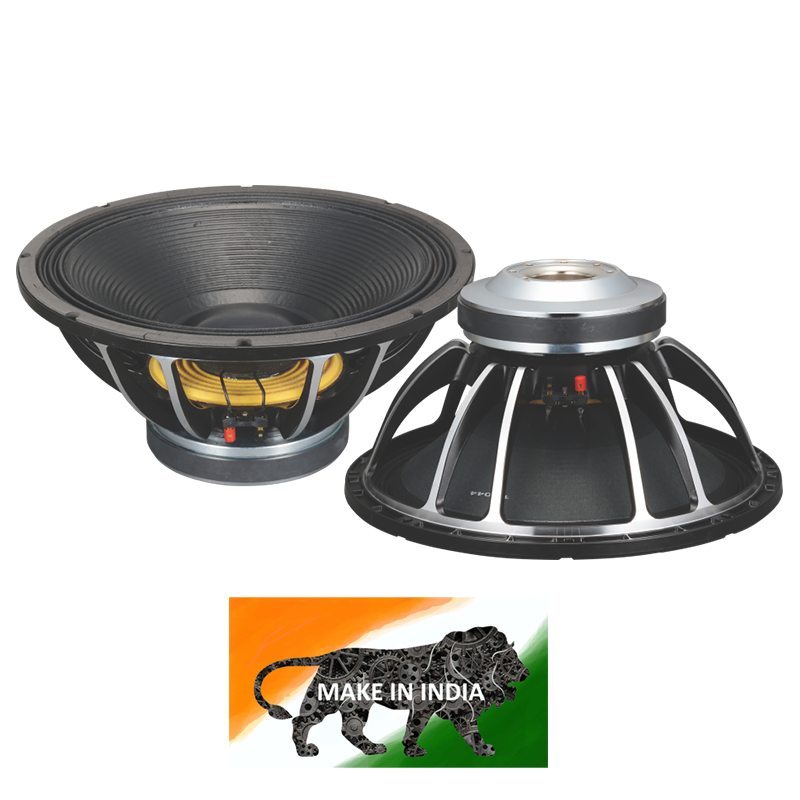

BL-18/1500 18” LF Drivers – Copper Voice Coil 18 Inches Dj Speakers
RealAudio – BL-18/1500 18” LF Drivers – Copper Voice Coil 18 Inches Dj Speakers Engineered to Deliver Exceptional Bass Performance, High Sound Pressure Levels, and Outstanding Reliability in Professional Audio Dj Speakers. Designed for Djs, Sound Reinforcement Professionals, Rental Companies, Touring Systems, and Fixed Installations, This Powerful Lf Driver Combines Advanced Engineering With Rugged Construction to Produce Deep, Accurate, and Impactful Low-frequency Reproduction.
Built Around a High-performance Copper Voice Coil, the BL-18/1500 is Capable of Handling Demanding Audio Signals While Maintaining Excellent Thermal Stability and Efficiency. Whether Used in High-Output Subwoofer Systems, Bass Reflex Enclosures, or Large-scale PA Cabinets, This Driver Delivers the Power and Precision Required for Today’s Professional Sound Environments. High-Power Professional 18-Inch Low Frequency Driver for Dj Speakers & PA Systems, Exceptional Low-Frequency Performance, Advanced Copper Voice Coil Technology.
Specifications
| Parameter | Specification |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 3000 W (Peak) |
| Nominal Power Handling | 1500 W (AES) |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 35 Hz – 3500 Hz |
Voice Coil & Magnetic Assembly
| Parameter | Specification |
| Voice Coil Diameter | 99.5 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Magnet Material | Ceramic Ring |
| Winding Depth | 30 mm (1 in) |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Flux Density | 1.1 T |
Applications
- Professional DJ Sound Systems
- High-Power Subwoofer Cabinets
- Live Concert Sound Reinforcement
- Touring Audio Systems
- Outdoor Event Sound Systems
- Auditorium and Stadium Installations
- Club and Entertainment Venues
- Rental and Production Audio Systems
Performance Highlights
The BL-18/1500 is engineered to deliver powerful low-frequency performance with exceptional reliability Dj Speakers. Featuring a large 4-inch copper voice coil, reinforced moving assembly, and optimized magnetic circuit, this driver produces deep, accurate bass while maintaining excellent efficiency and thermal stability under demanding operating conditions.
