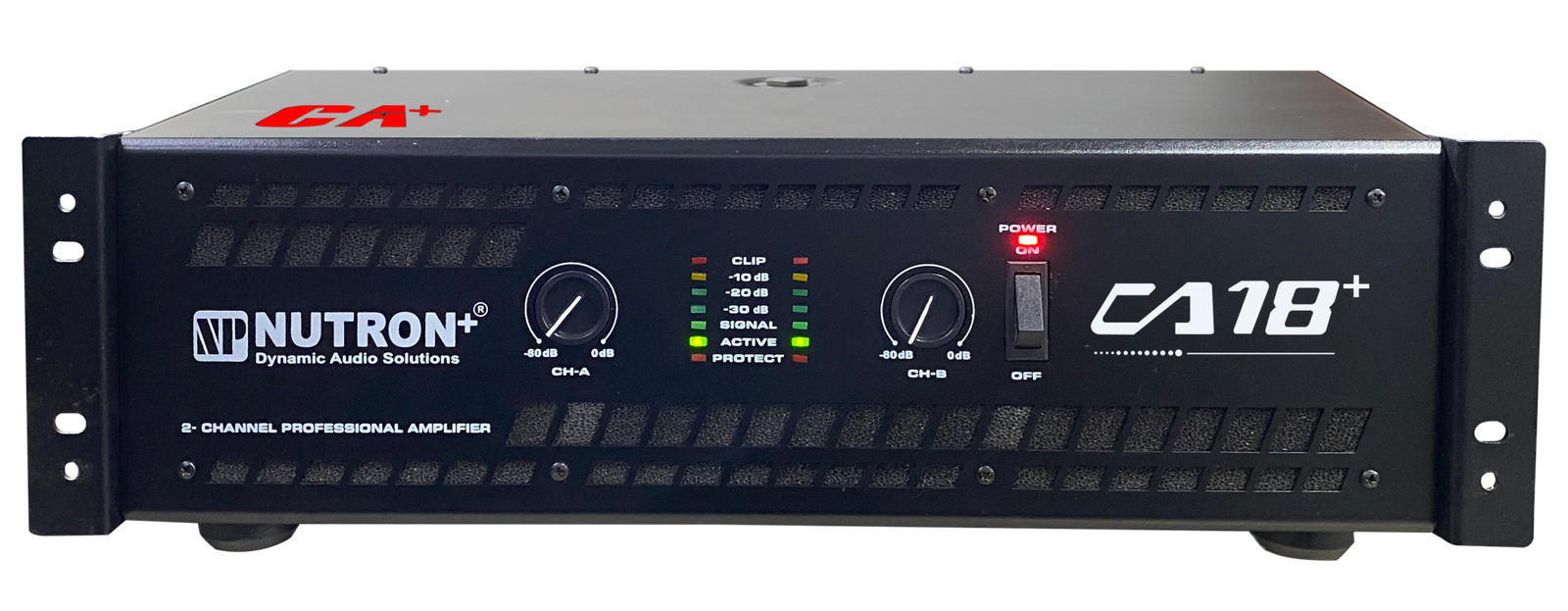

NUTRON+ CA-18+ CLASS AB Dual Channel Professional Power Amplifier
The Nutron+ Ca-18+ is a High-performance Dual Channel Professional Power Amplifier Engineered for Powerful, Clean, and Reliable Audio Reproduction. Built With a High-current Toroidal Transformer and Advanced Class Ab Circuitry, It Delivers Exceptional Sound Clarity, Deep Bass Response, and Stable Operation for Demanding Professional Sound Applications.
OUTPUT POWER:(4Ω) Stereo/Mono: 2X1800W
OUTPUT POWER:(2Ω) Stereo/Mono: 2X2500W
OUTPUT POWER(8Ω)BRIDGE :3600W
OUTPUT POWER(4Ω)BRIDGE :5000W
Output Circuitry: Class AB
Frequency Response: 20Hz-25KHz ± 1dB
Input Sensitivity: SELECTABLE (0.77V/1.0V/1.44V)
Input Impedance Balanced /Unbalanced: 20KΩ / 10KΩ
THD+N: ≤ 1%
S/N Ratio: >102dB
Damping Factor: >1000
Crossover: Dual Channel Crossover

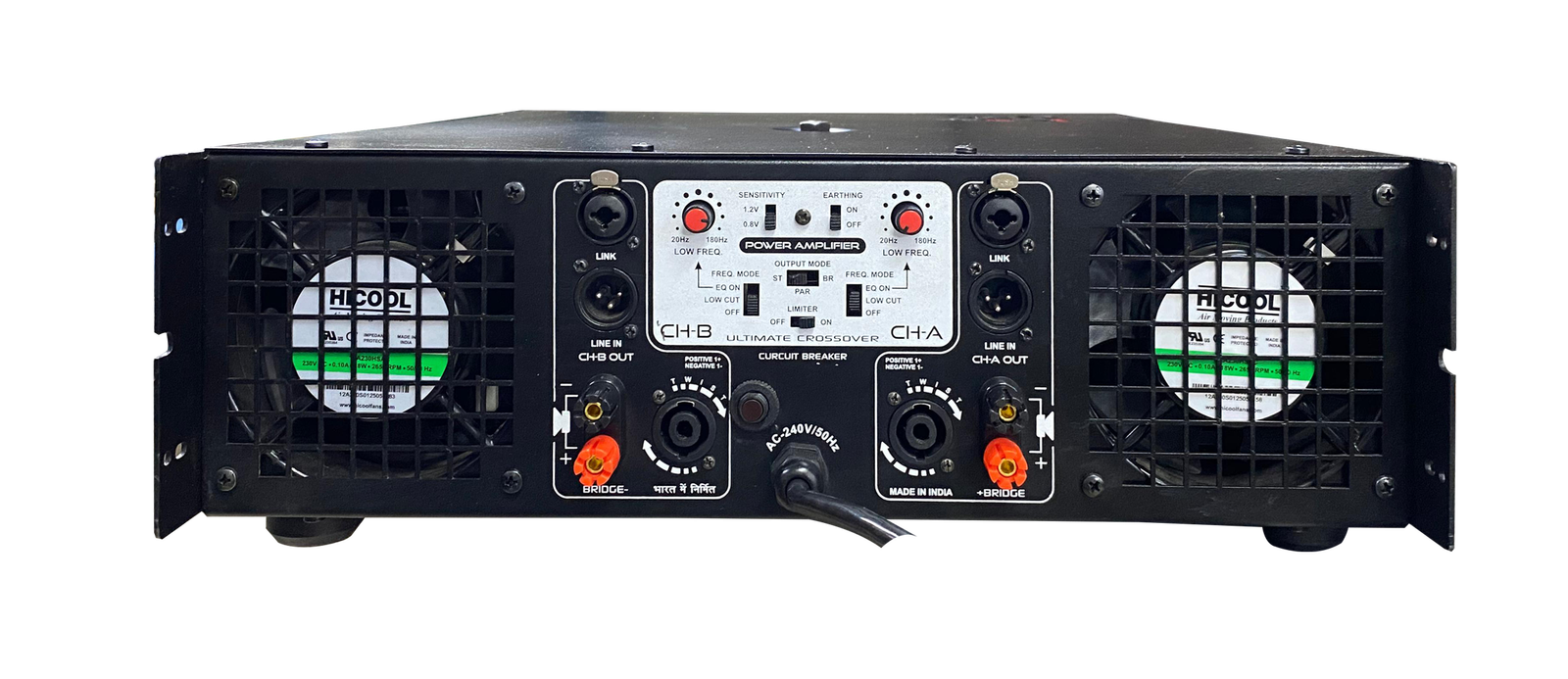

Cooling System: Front -to-back via 4 variable -speed fans
Protection: Soft startup, Short, under-impedance, over-current, clip limiter, thermal protection
Rack Space: 3U
