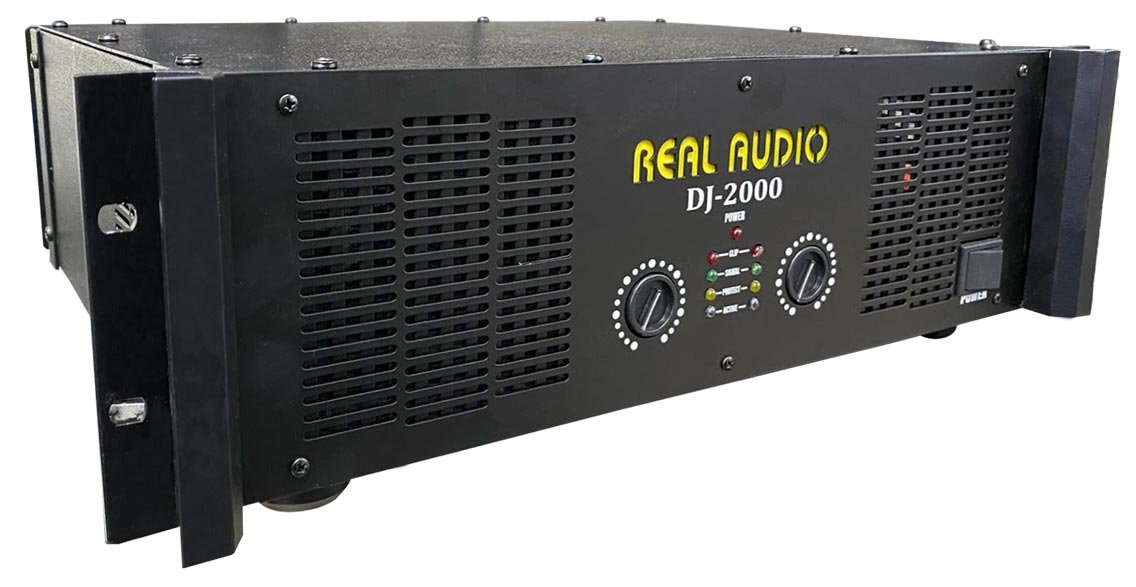

DJ-2000 Class AB Dual Channel Power Amplifier
RealAudio DJ-2000 is a Professional Class Ab Dual-Channel Power Amplifier Designed for Djs, Live Performances, Event Productions, and P.A. Sound Systems. Featuring a High-Current Toroidal Transformer, Powerful Output Stage, and Advanced Protection Circuitry, the DJ-2000 Delivers Deep Bass, Crystal-clear Sound, and Reliable Performance in Demanding Audio Environments.
Technical Specifications
Model: DJ-2000
Output Power
- 8Ω Stereo/Mono: 2 × 500W
- 4Ω Stereo/Mono: 2 × 700W
- 2Ω Stereo/Mono: 2 × 1000W
Performance
- Output Circuitry: Class AB
- Frequency Response: 20Hz – 20kHz ±1dB
- Input Sensitivity: 0.707V (0dBm)
- Input Impedance (Balanced/Unbalanced): 20kΩ / 10kΩ
- THD+N: ≤ 1%
- Signal-to-Noise Ratio: >102dB
- Damping Factor: >600
System Features
- Dual Channel Crossover
- 1 Variable-Speed Cooling Fan
Protection Features
- Soft Start-Up Protection
- Short Circuit Protection
- Under-Impedance Protection
- Over-Current Protection
- Clip Limiter Protection
- Thermal Protection
Physical Specifications
- Rack Space: 3U
-
RealAudio DJ-2000
Powerful Performance • Deep Bass • Crystal Clear Sound
