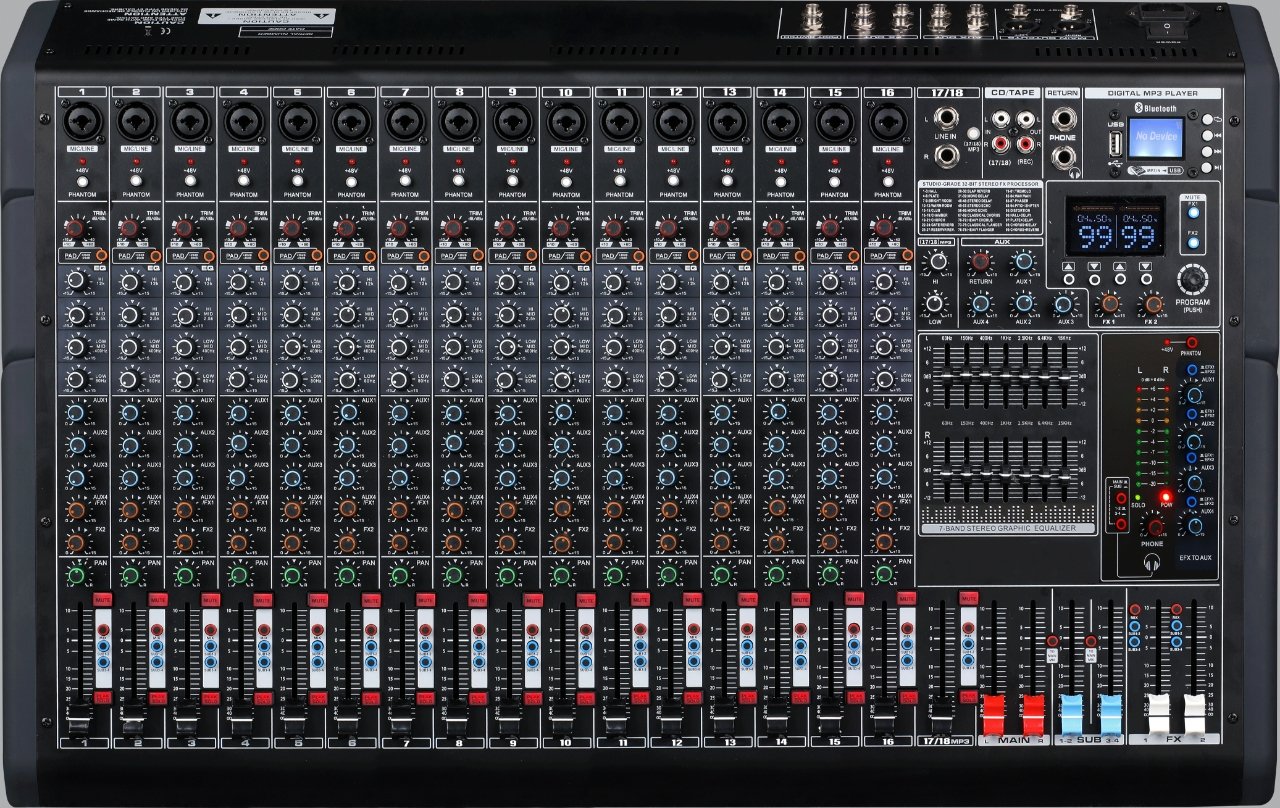

NutronPlus Audio Mixer with Echo & MP3 Player | Professional Mixer Amplifier
The NutronPlus NTM Series Professional Audio Mixer is designed for superior sound performance in live events, studios, conferences, auditoriums, and DJ applications. Available with 10, 14, 18, and 26 input channels, it features an ultra-low noise circuit design, high-gain microphone preamps, and a built-in 99 DSP reverberation processor for rich and clear audio output. Equipped with Bluetooth connectivity, USB music playback, recording support, LED display, and USB computer interface, it offers seamless audio management. The three-band parametric EQ, 7-stage balance adjustment, and 48V phantom power ensure precise sound control. With a 90dB signal-to-noise ratio, 20Hz–20kHz frequency response, and ultra-low 0.015% THD, it delivers professional-grade audio quality.
SPECIFICATIONS
✔ The NTM series offers 10/14/18/26 inputs
✔ New ultra-low noise design
✔ High gain voice play
✔ Built-in high quality reverberation chip, 99DSP
✔ High quality USB music player with frequently used recordings.
Bluetooth function. LED display
✔ USB computer connection
✔ Three-stage parametric equalization
✔ 7 stage balance adjustment
✔ 48V phantom power supply
Technical parameter
✔ Audio input: To large input level: +10dBu/ to small input level -58dBu
✔ Audio output: Up to high output level: +20dBu/ Standard output level +4dBu
✔ SNR S/N: 90dB
✔ Balance: ±15dB, high frequency 10KHz/
intermediate frequency 250Hz-8KHz/ Low frequency 60Hz
✔ Frequency response: 20Hz-20KHz
✔ Total harmonic distortion: 0.015% 0dB 1KHz
✔ Power consumption: 20W
✔ Power input voltage: AC 100V-240V/50Hz
APPLICATIONS
• Live Sound Reinforcement
• DJ & Event Sound Systems
• Recording Studios
• Conference & Meeting Rooms
• Churches & Houses of Worship
• Educational Institutions
• Public Address Systems
• Stage Performances & Cultural Events
