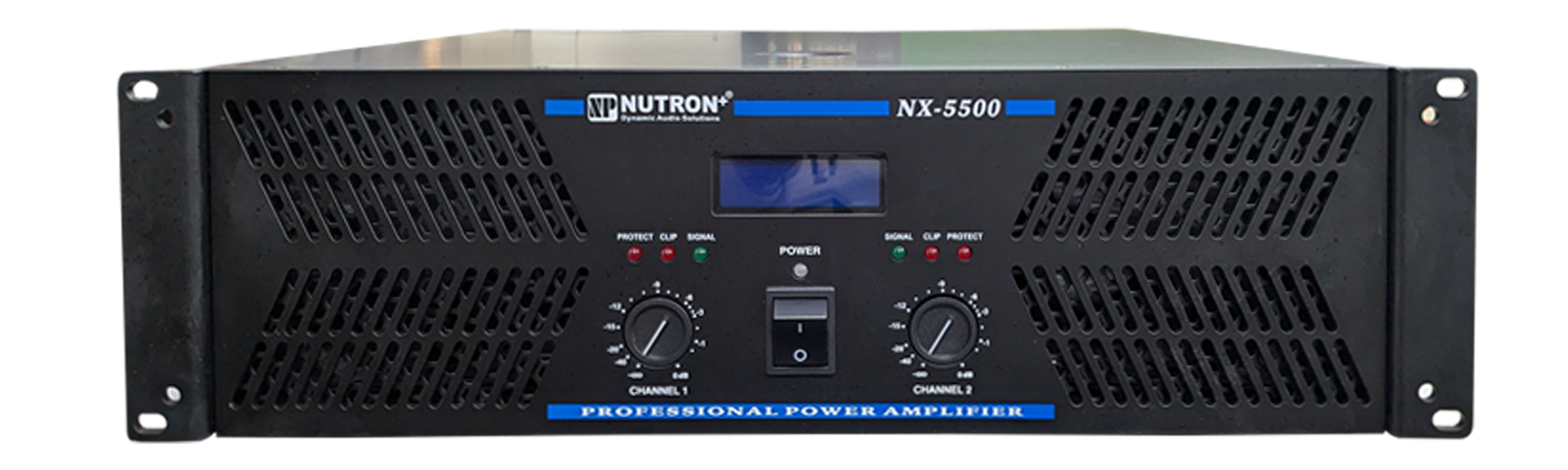

NX – 5500 Class H Dual Channel Power Amplifier
RealAudio NX-5500 is a Professional Class H Dual Channel Power Amplifier Engineered to Deliver Powerful Output, Exceptional Efficiency, and Crystal-clear Sound Quality. Designed for Djs, Live Performances, Rental Sound Companies, Auditoriums, Clubs, and Professional P.A. Systems, the NX-5500 Provides Deep Bass Response, Dynamic Audio Performance, and Reliable Operation Under Demanding Conditions.
Technical Specifications
Output Power
- 8Ω Stereo/Mono: 2 × 1400W
- 4Ω Stereo/Mono: 2 × 2000W
- 2Ω Stereo/Mono: 2 × 2800W
- 8Ω Bridge: 4000W
- 4Ω Bridge: 5600W
Performance
- Output Circuitry: Class H
- Frequency Response: 15Hz – 25kHz (+0/-1dB)
- Input Sensitivity: 0.775V / 1.0V / 1.4V
- Input Impedance (Balanced/Unbalanced): 10kΩ Balanced to Ground
- Crosstalk: >65dB @ 8Ω, 1kHz
- Signal-to-Noise Ratio: >105dB
- Damping Factor: >1000:1
- Slew Rate: 40V/µs
Cooling System
- Front-to-Back Airflow
- 2 Variable-Speed Cooling Fans
Protection Features
- Soft Start-Up Protection
- Short Circuit Protection
- Under-Impedance Protection
- Over-Current Protection
- Clip Limiter Protection
- Thermal Protection
Physical Specifications
- Rack Space: 3U
Applications
- Professional DJ Sound Systems
- Live Concerts & Events
- Rental Sound Companies
- Auditoriums & Banquet Halls
- Houses of Worship
- Clubs & Entertainment Venues
- Outdoor Sound Reinforcement
- Professional P.A. Systems
- High-Power Subwoofer Applications
RealAudio NX-5500
1400W × 2 @ 8Ω • Class H Efficiency • Deep Bass • Professional Performance
