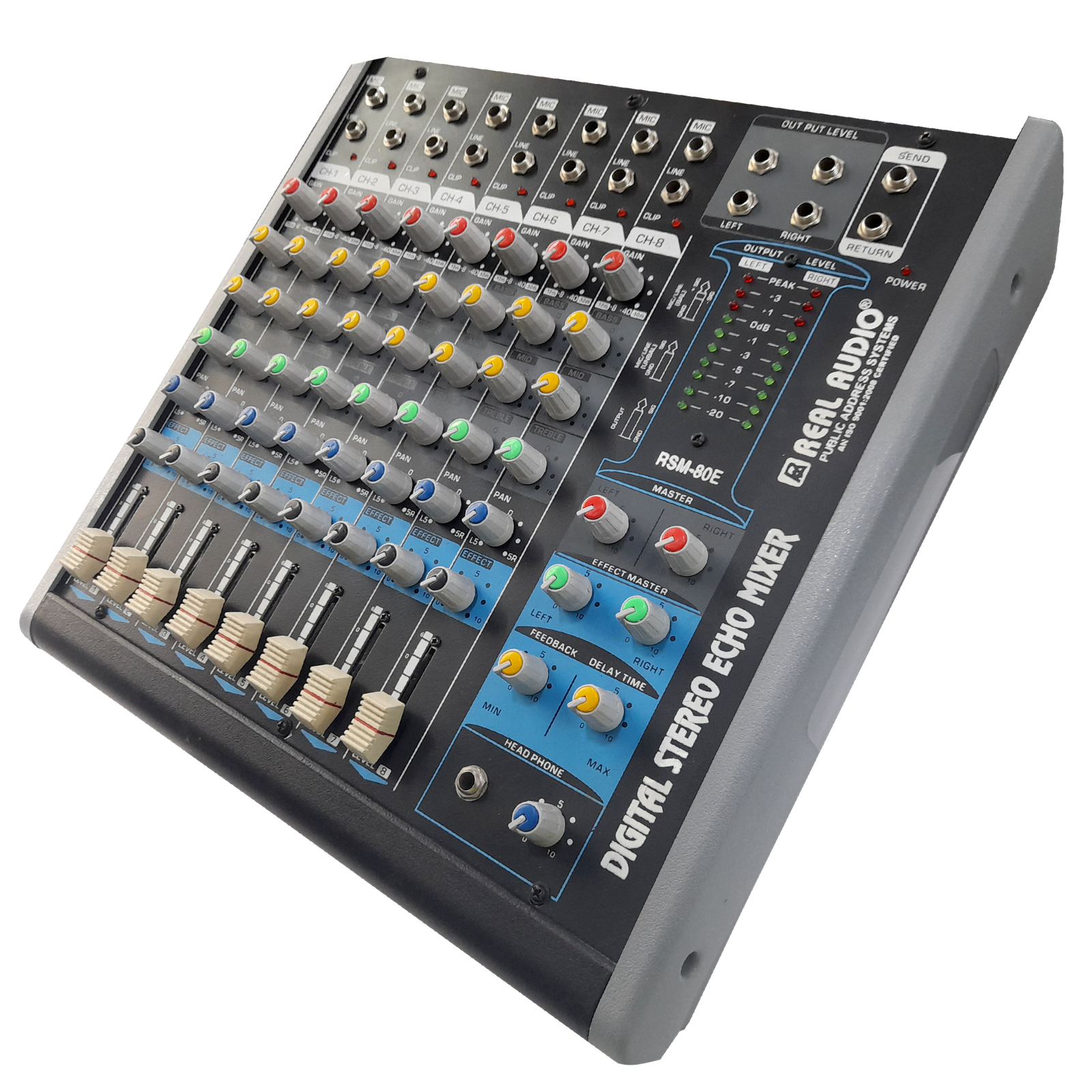

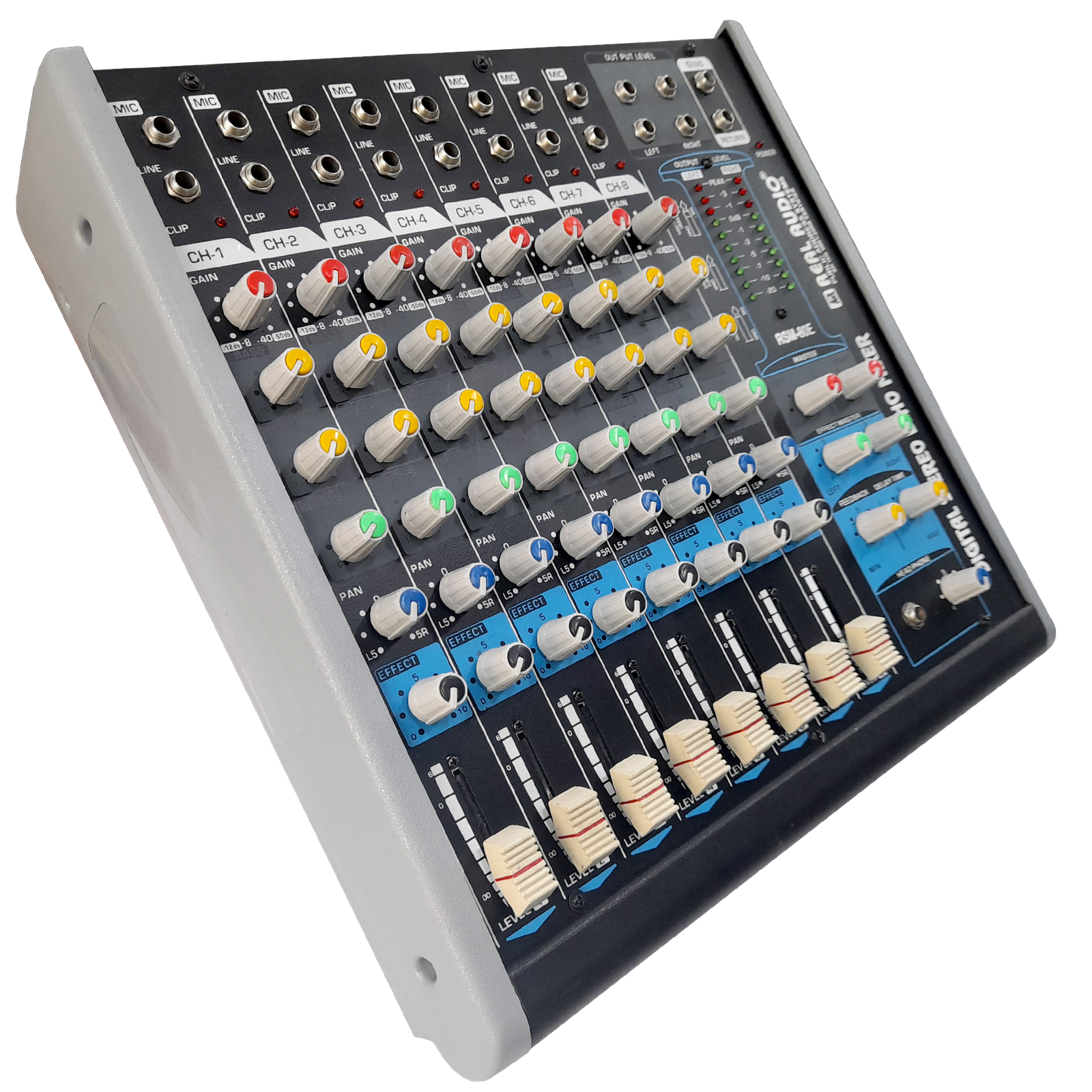

RealAudio 8 Channel Audio Mixer with Digital Echo | Professional Audio Mixer Dealer in India
The RealAudio 8 Channel Audio Mixer is designed for professional audio applications including DJ performances, live events, conferences, religious gatherings, and PA systems. Equipped with 8 unbalanced input/output channels, it delivers clear and balanced sound with a wide frequency response of 25Hz–20kHz. The built-in Digital Echo/Reverb system provides adjustable effects from 20 to 400 milliseconds for enhanced vocal clarity and music performance. Individual 30mm channel faders, precision Bass, Mid, and Treble controls, and adjustable input gain offer complete sound customization. With low 0.01% distortion, 70dB signal-to-noise ratio, and LED output metering, it ensures reliable and professional audio performance.
SPECIFICATIONS
• Inputs / Outputs: 8 Unbalanced Input & Output Channels
• Frequency Response: 25Hz – 20kHz
• Echo/Reverb System: Digital Echo (20ms – 400ms Delay)
• Microphone Input Impedance: 2kΩ
• Mono Line Input Impedance: 10kΩ
• Channel Faders: 30mm Smooth Slide Fader for Each Channel
• Input Gain Range: -10dB to -50dB
• Signal-to-Noise Ratio (S/N): 70dB
• Total Harmonic Distortion (THD): 0.01%
• Bass Control: ±16dB
• Mid Control: ±10dB
• Treble Control: ±16dB
• Effect Return: -30dB Max
• Effect Send (Pre-Fader): 0dB to 0.5V Max
• Channel Signal Indicators: Clip LED
• Output Metering: 10-Segment LED Display
• Power Supply: AC 220V – 240V, 50/60Hz
APPLICATIONS
• DJ Sound Systems
• Live Stage Performances
• Public Address Systems
• Conference Rooms
• Schools & Auditoriums
• Religious Gatherings
• Event Management
• Sound Reinforcement Applications
