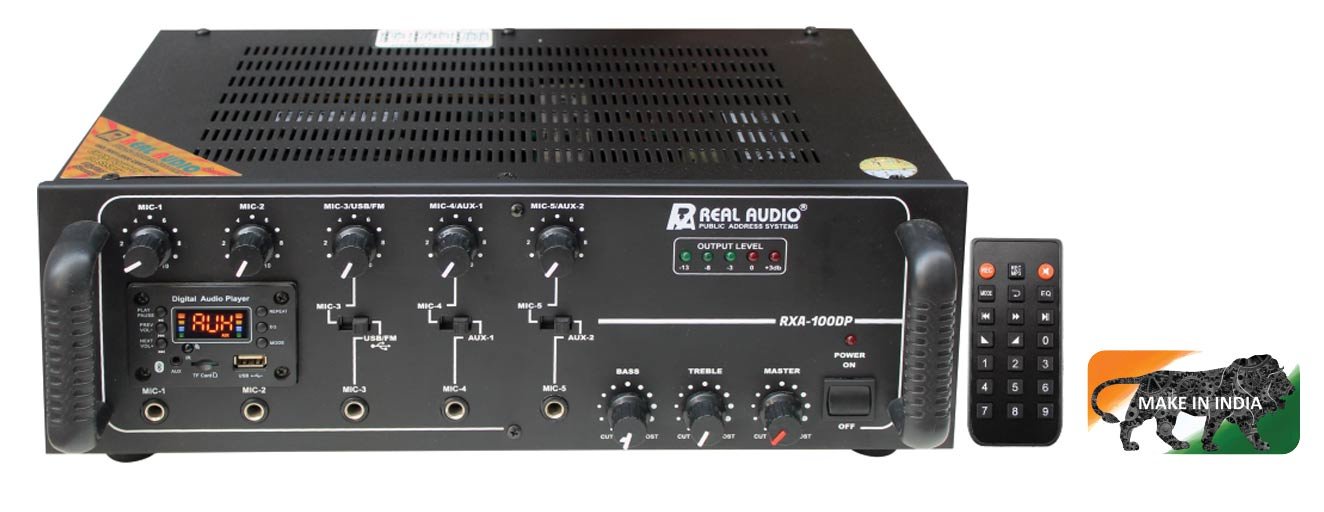

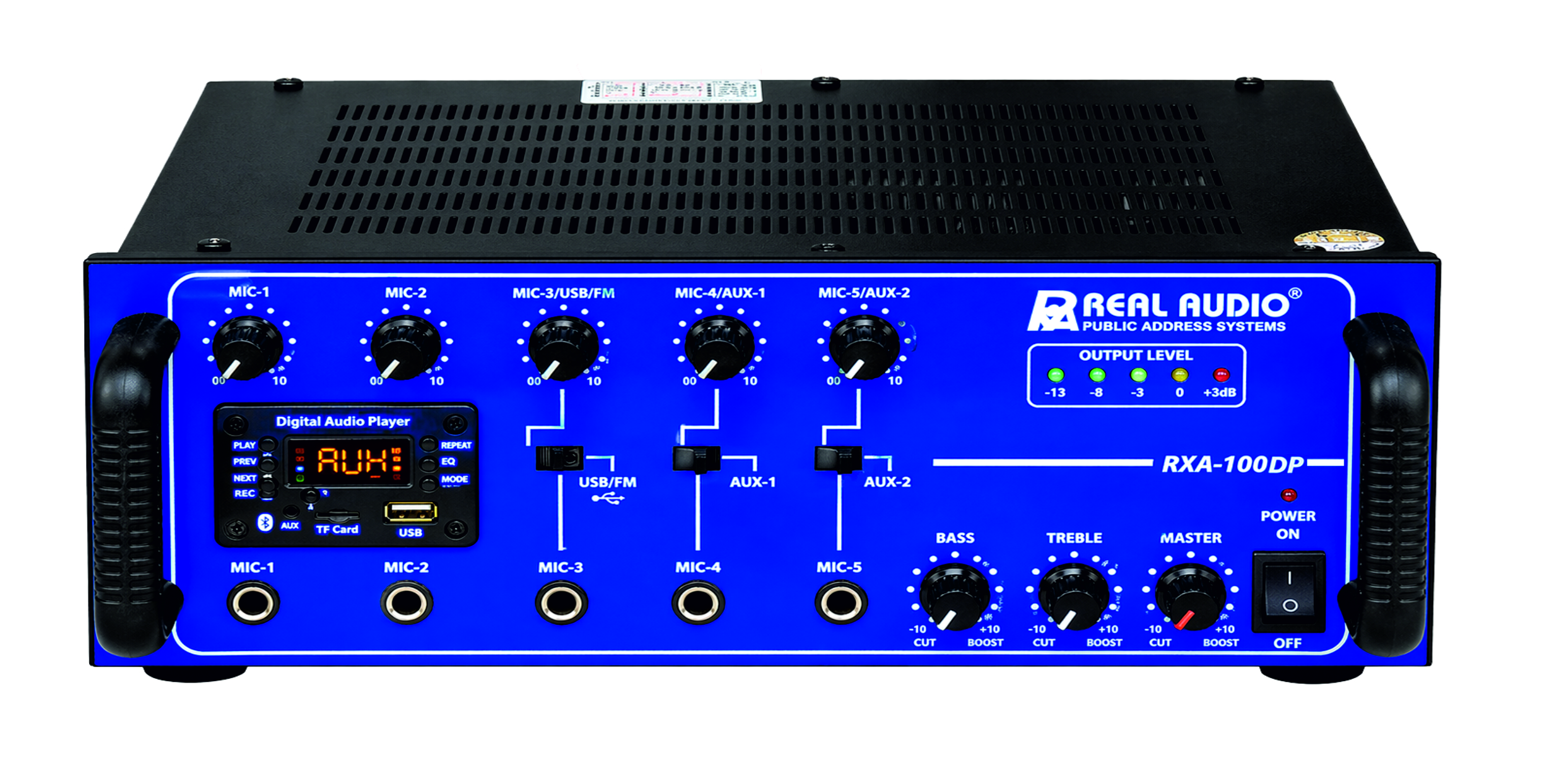

RXA-100 DP (100Watt) P.A. Mixer Amplifer Digital Player Multiple Microphone Inputs
RXA-100 DP is a Versatile 100 Watt P.A. Mixer Amplifier Digital Player Featuring a Built-in Digital Player, Multiple Microphone Inputs, and Reliable Performance for Everyday Public Address Applications. Designed for Schools, Offices, Shops, Religious Places, and Commercial Installations, It Delivers Clear Speech Reproduction and Quality Music Playback in a Compact, User-friendly Design Mixer Amplifer Digital Player.
Technical Specifications
Model: RXA-100 DP
Power Output: 120W Max, 100W RMS @ 10% THD
Input Channels
- 4 × Mic: 0.8mV / 4.7kΩ
- 2 × Aux: 100mV / 470kΩ
- 1 × Line: 1V / 50kΩ
Digital Player
- MP3 Player
- FM Radio
- Remote Control
- USB Port
- SD Card Reader
- MMC Card Reader
Frequency Response
50Hz – 15kHz ±3dB
Tone Controls
- Bass: ±10dB @ 100Hz
- Treble: ±10dB @ 10kHz
Outputs
- Line Out: 1V / 1kΩ
- Pre Out: 200mV / 600Ω
Output Regulation
Less than 2dB from No Load to Full Load @ 1kHz

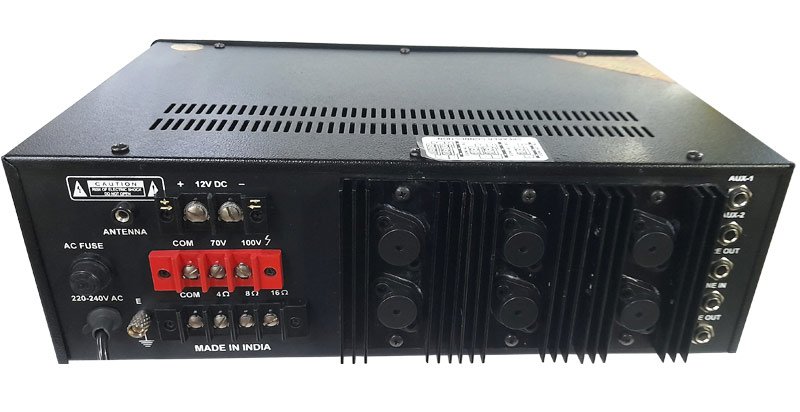

Speaker Outputs
- 4Ω Direct Output
- 8Ω Direct Output
- 16Ω Direct Output
- 70V Line Output
- 100V Line Output
- Compatible with LMT Speaker Systems
Power Supply
- AC 230V
- DC 24V (12V × 2 Car Batteries)
- 2 Year Manufacturing Warranty & Lifetime Transformer Warranty
Applications
🔊 Public Address Systems
🎤 Schools & Educational Institutions
⛪ Religious Places
🏢 Offices & Commercial Buildings
🛍️ Retail Stores & Showrooms
🏥 Hospitals & Clinics
🎵 Background Music Installations
📢 Announcement Systems
