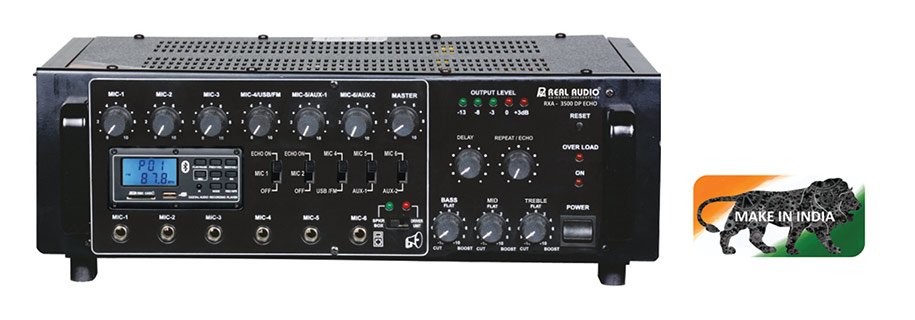

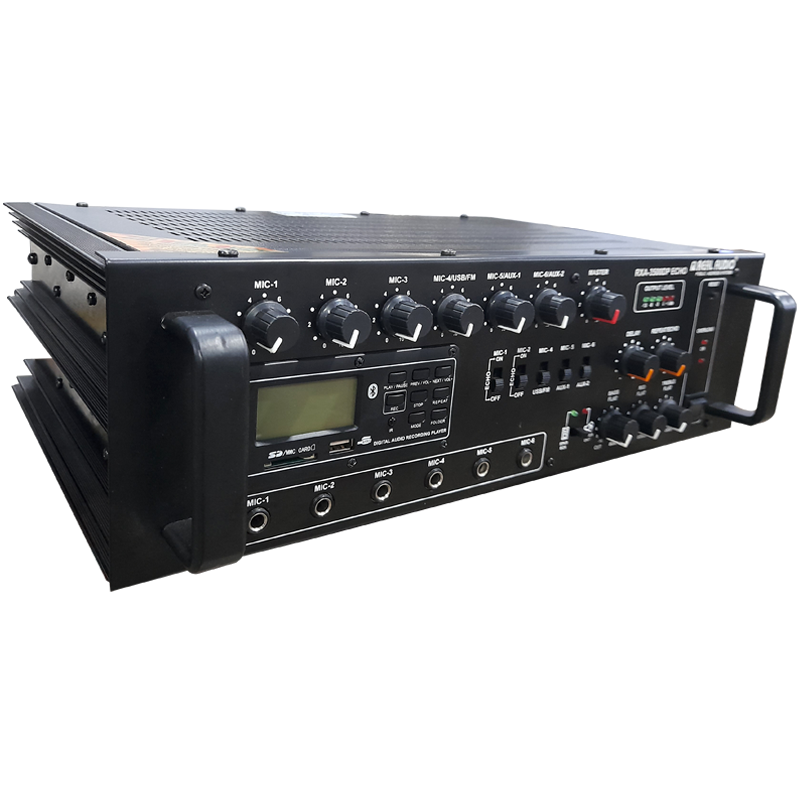

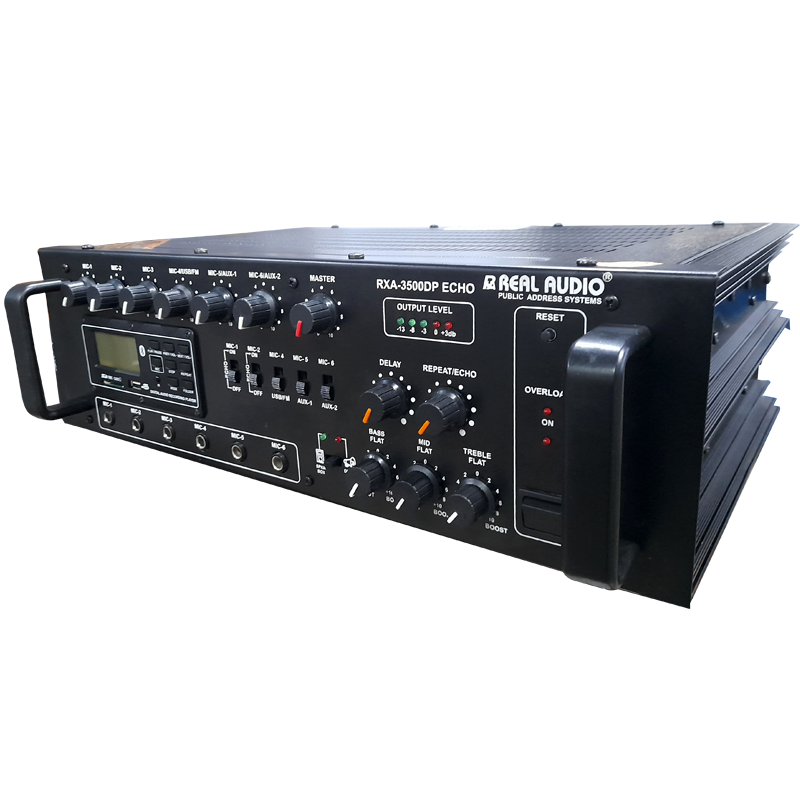

RXA-350 DP ECHO 350 Watt Digital Player with Echo Amplifier
RealAudio – RXA-350 DP ECHO 350 Watt Digital Player with Echo Amplifier is a Powerful and Feature-rich 350 Watt Digital Player With Echo Amplifier, Engineered for Professional Public Address Systems, Large Venues, Religious Institutions, Educational Campuses, Commercial Complexes, and Outdoor Events. Combining High-power Amplification With Advanced Digital Playback, Bluetooth Connectivity, Recording Capability, and Professional Echo Controls, the Rxa-350 Dp Echo Delivers Exceptional Sound Quality and Operational Flexibility. Designed for Demanding Audio Environments, This Echo Amplifier Ensures Clear Voice Projection, Dynamic Music Reproduction, and Reliable Performance for Continuous Operation.
Technical Specifications
- Power Output: 500W Max, 350W RMS @ 10% THD
- Frequency Response: 50Hz – 15kHz ±3dB
- Output Regulation: Less than 2dB from No Load to Full Load at 1kHz
Input Channels
- 6 × Microphone Inputs: 0.8mV / 4.7kΩ
- 1 × Auxiliary Input: 100mV / 470kΩ
- 1 × Line Input: 1V / 50kΩ
Digital Features
- Built-in MP3 Player
- USB Reader
- Recording Function
- Bluetooth Connectivity
- Remote Control Included
Tone Controls
- Bass: ±10dB at 100Hz
- Mid: ±10dB at 1kHz
- Treble: ±10dB at 10kHz
Echo Controls
- Delay Control
- Repeat Control
- Applicable on Mic 1 & Mic 2
Outputs
- Line Out: 1V / 1kΩ
- Pre-Out: 200mV / 600Ω

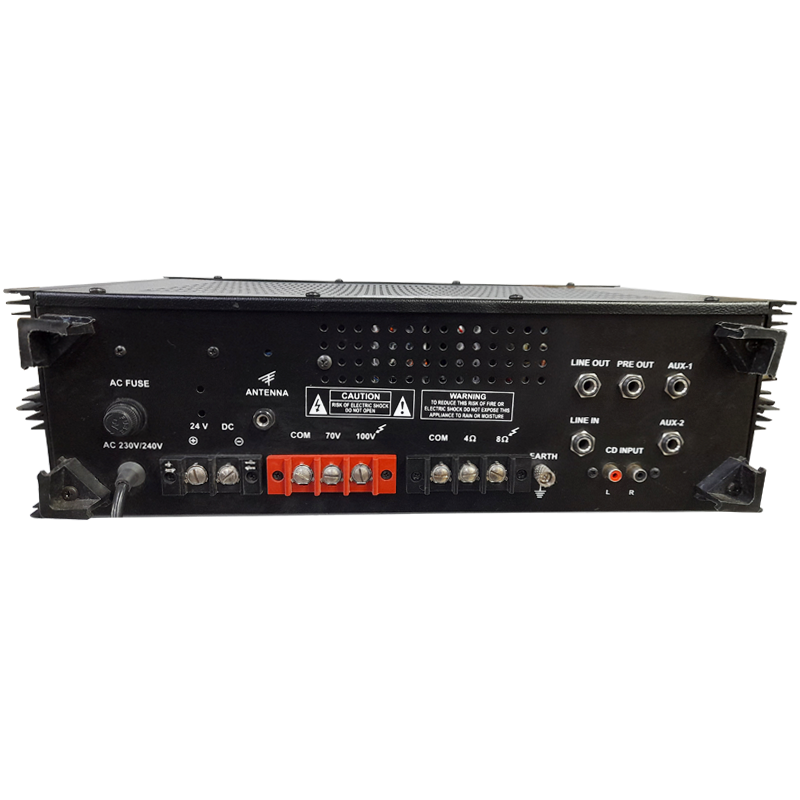

Speaker Outputs
- 2Ω, 4Ω, 8Ω Direct Speaker Outputs
- 70V & 100V Line Outputs for Distributed PA Systems and LMT Applications
Power Supply
- AC: 230V AC
- DC: 24V DC (12V × 2 Car Batteries)
Cooling System
- High-Efficiency DC Fan Cooling
Ideal Applications
- Large Public Address Systems
- Schools, Colleges & Universities
- Temples, Mosques & Churches
- Auditoriums & Convention Centers
- Industrial Plants & Warehouses
- Shopping Malls & Commercial Buildings
- Community Halls
- Outdoor Events & Public Gatherings
