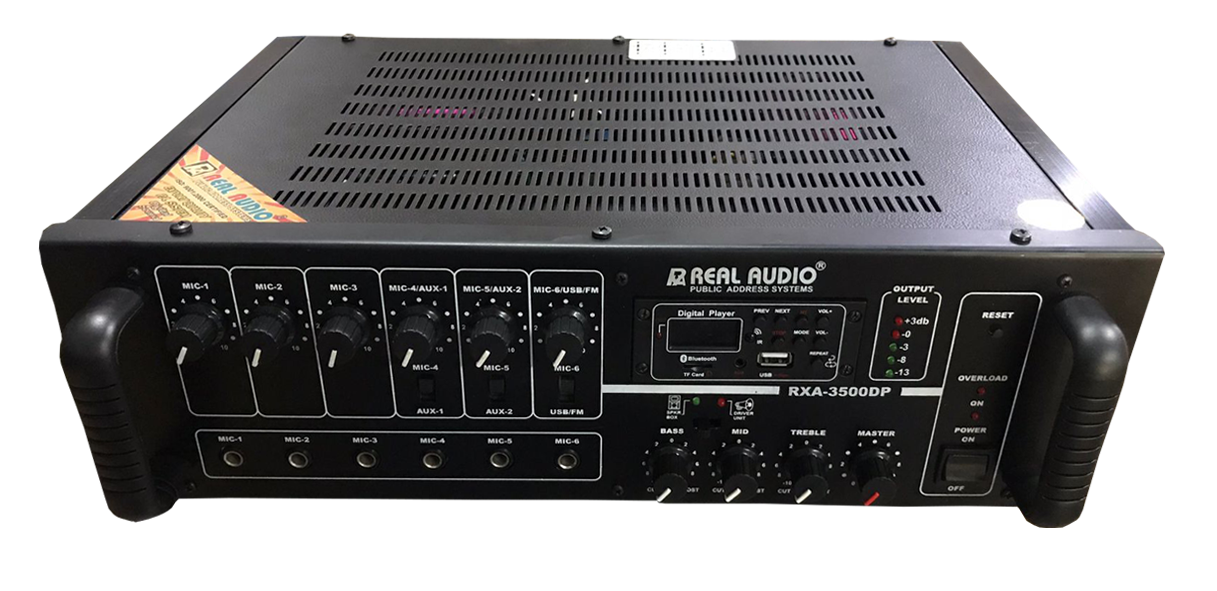

RXA-3500 DP Digital Player Amplifier

RealAudio RXA-3500 DP Digital Player Amplifier

The RealAudio RXA-3500 DP is a 350W RMS Digital Player Amplifier with an Inbuilt Digital Player, Designed for Temples, Schools, Announcements, Conferences, Public Address Systems, and Small-to-Medium Sound Installations. It includes Multiple Microphone inputs, Bluetooth/USB playback, and 70V/100V line output support.

MODEL-RXA-3500 DP

Power Output:
• 400W Max
• 350W RMS @ 10% THD

Input Channels:
• 6 × Mic Inputs: 0.8mV / 4.7kΩ
• 2 × AUX Inputs: 100mV / 470kΩ
• 1 × Line Input: 1V / 50kΩ

Frequency Response:
• 50Hz – 15kHz ±3dB

Tone Controls:
• Bass: ±10dB @ 100Hz
• Mid: ±10dB @ 1kHz
• Treble: ±10dB @ 10kHz

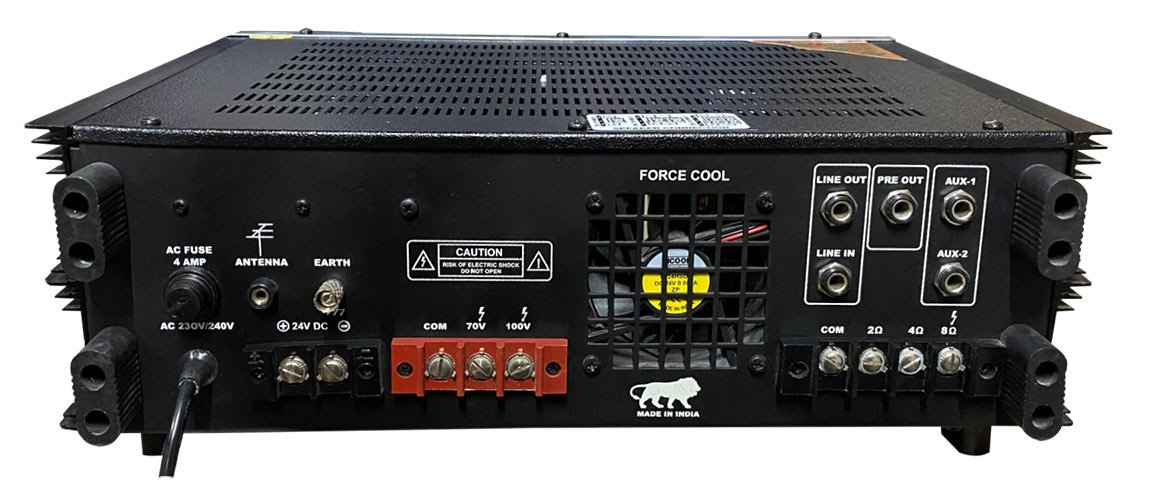

Outputs:
• Line Out: 1V / 1kΩ
• Pre Out: 200mV / 600Ω

Output Regulation:
• Less than 2dB (No Load to Full Load @ 1kHz)

Speaker Outputs:
• 2Ω & 4Ω Direct Connection
• 70V / 100V Line Output (For Use with LMT)
• Independent Zone Outputs

Power Supply:
• AC 230V, 50Hz

Cooling System:
• AC Fan Cooling

Applications:
• Public Address Systems
• Schools & Educational Institutes
• Religious Places
• Offices & Commercial Buildings
• Factories & Warehouses
• Hospitals & Community Centers

RealAudio RXA-3500 DP is a powerful 350Watt Digital Player Amplifier designed for reliable public address and background music applications, featuring multiple microphone inputs, tone controls, and 70V/100V line output support.
