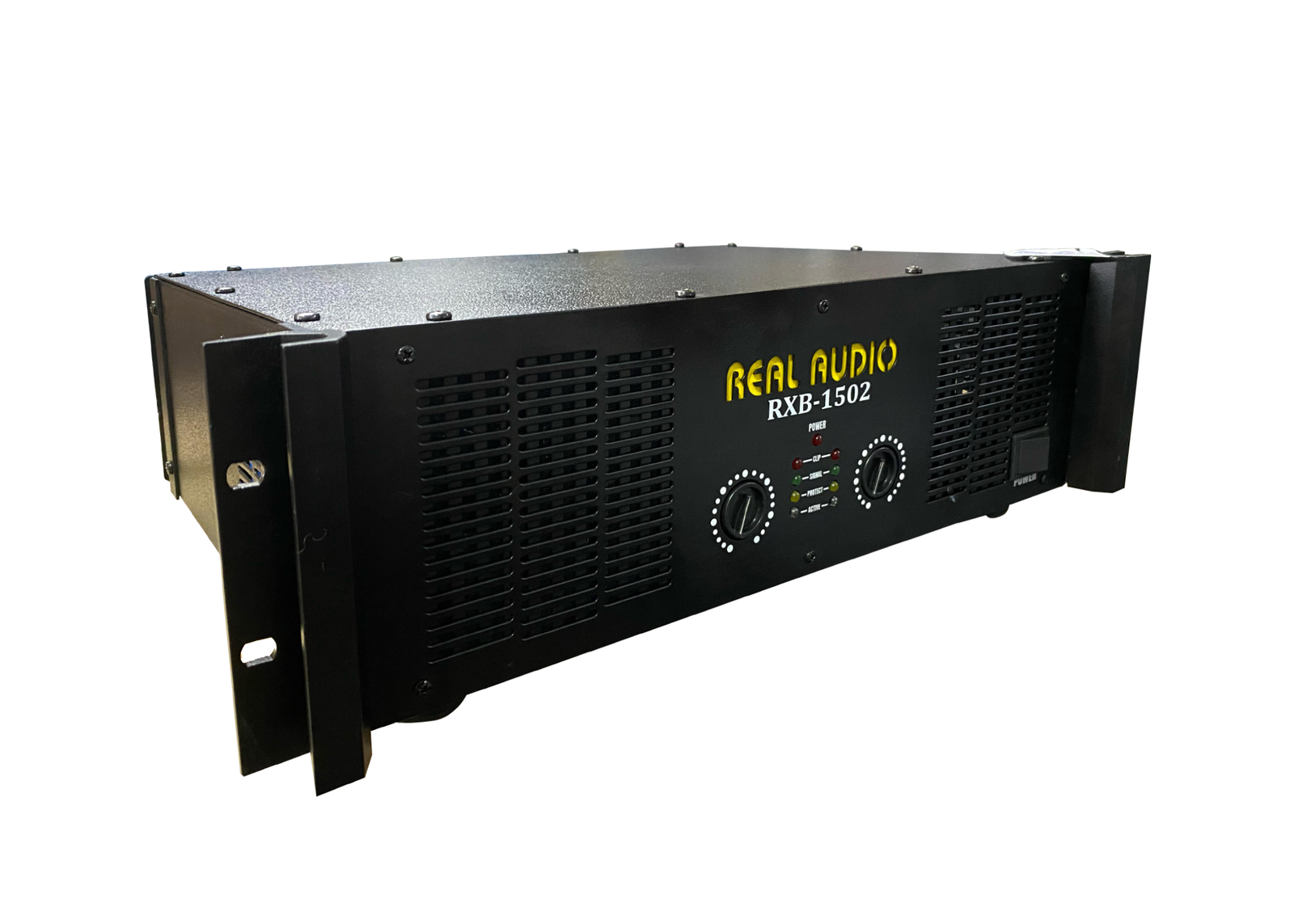

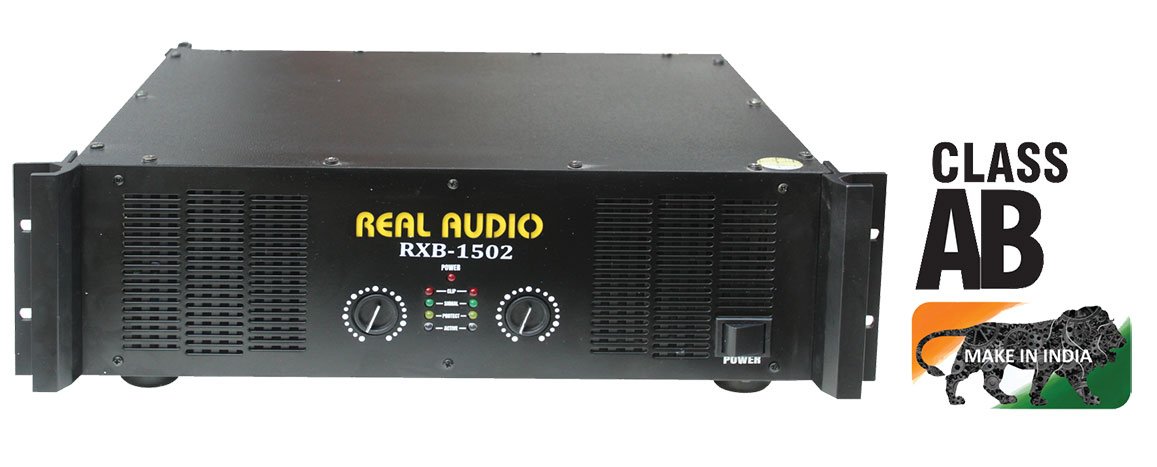

RXB-1502 DX Class AB Dual Channel Power Amplifier
RealAudio RXB-1502 DX Class AB Dual Channel Power Amplifier is a Professional-Grade Class AB Dual Channel Power Amplifier Engineered to Deliver Powerful Output, Superior Audio Clarity, and Reliable Performance. Designed for Demanding Sound Reinforcement Applications, It Offers Excellent Sound Quality With Strong Bass Response and Low Distortion, Making It Ideal for Djs, Live Events, Auditoriums, Houses of Worship, and Professional Pa Systems.
Specifications
Output Power
- 8Ω Stereo/Mono: 2 × 350W
- 4Ω Stereo/Mono: 2 × 500W
- 2Ω Stereo/Mono: 2 × 750W
Amplifier Class
- Class AB
Frequency Response
- 20Hz – 20kHz (±1dB)
Input Sensitivity
- 0.707V (0dBm)
Input Impedance
- Balanced: 20kΩ
- Unbalanced: 10kΩ
THD + N
- ≤ 1%
Signal-to-Noise Ratio
- >102dB
Damping Factor
- >1000
Crossover
- Built-in Dual Channel Crossover
Cooling System
- 1 Variable-Speed Fan
Protection Features
- Soft Start Protection
- Short Circuit Protection
- Under-Impedance Protection
- Over-Current Protection
- Clip Limiter
- Thermal Protection
Rack Space
- 3U
Applications
• Live Sound Reinforcement
• DJ Sound Systems
• Auditoriums & Theatres
• Houses of Worship
• Outdoor Events
• Rental Sound Companies
• Clubs & Entertainment Venues
• Professional PA Installations
Highlights
- Superior Audio Fidelity with Class AB Technology
- Strong Speaker Control and Dynamic Performance
- Reliable Operation Under Heavy Loads
- Built for Professional Touring and Installation Applications
- Durable Design for Long-Term Use
RealAudio RXB-1502 DX – Pure Power, Clear Sound, Professional Reliability.
