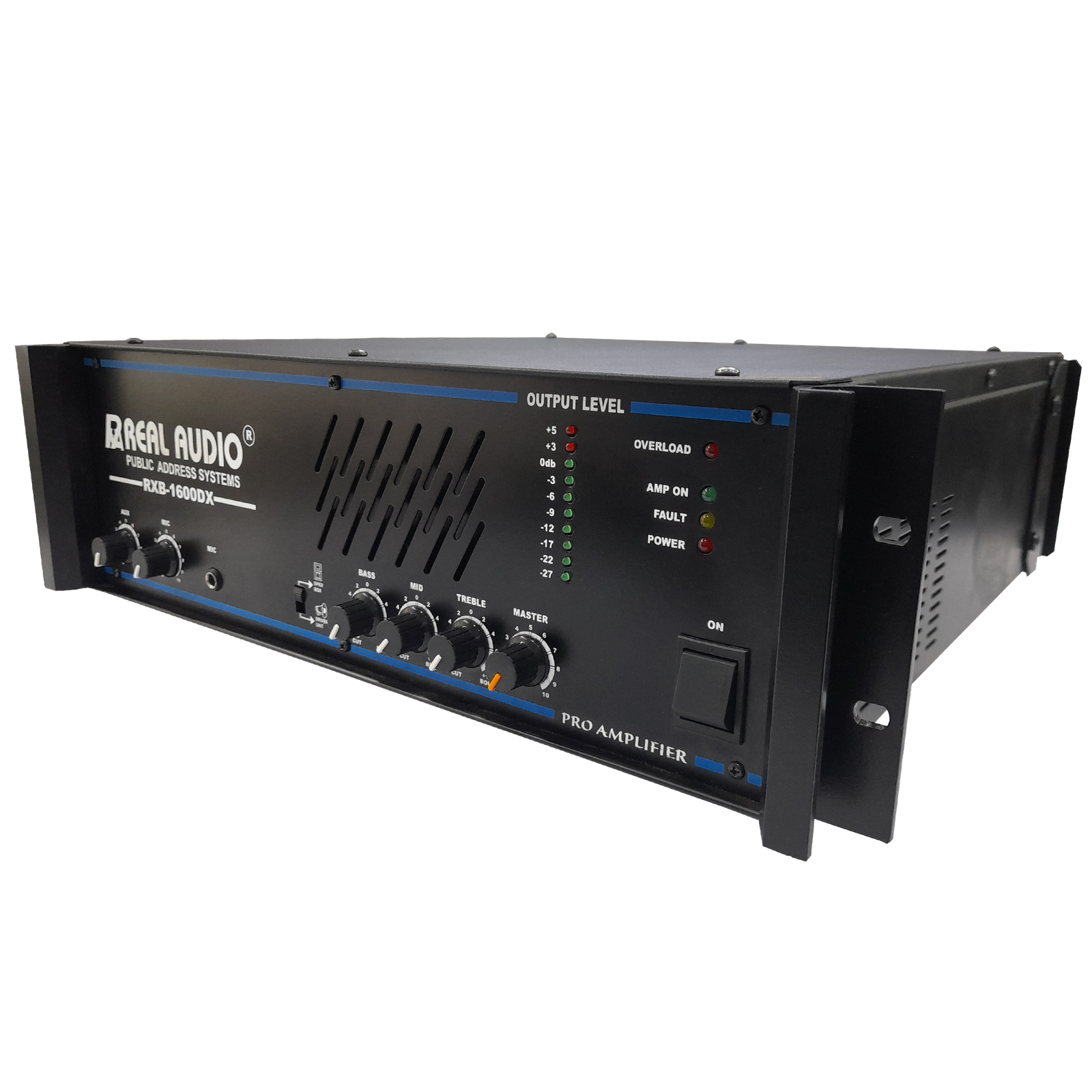

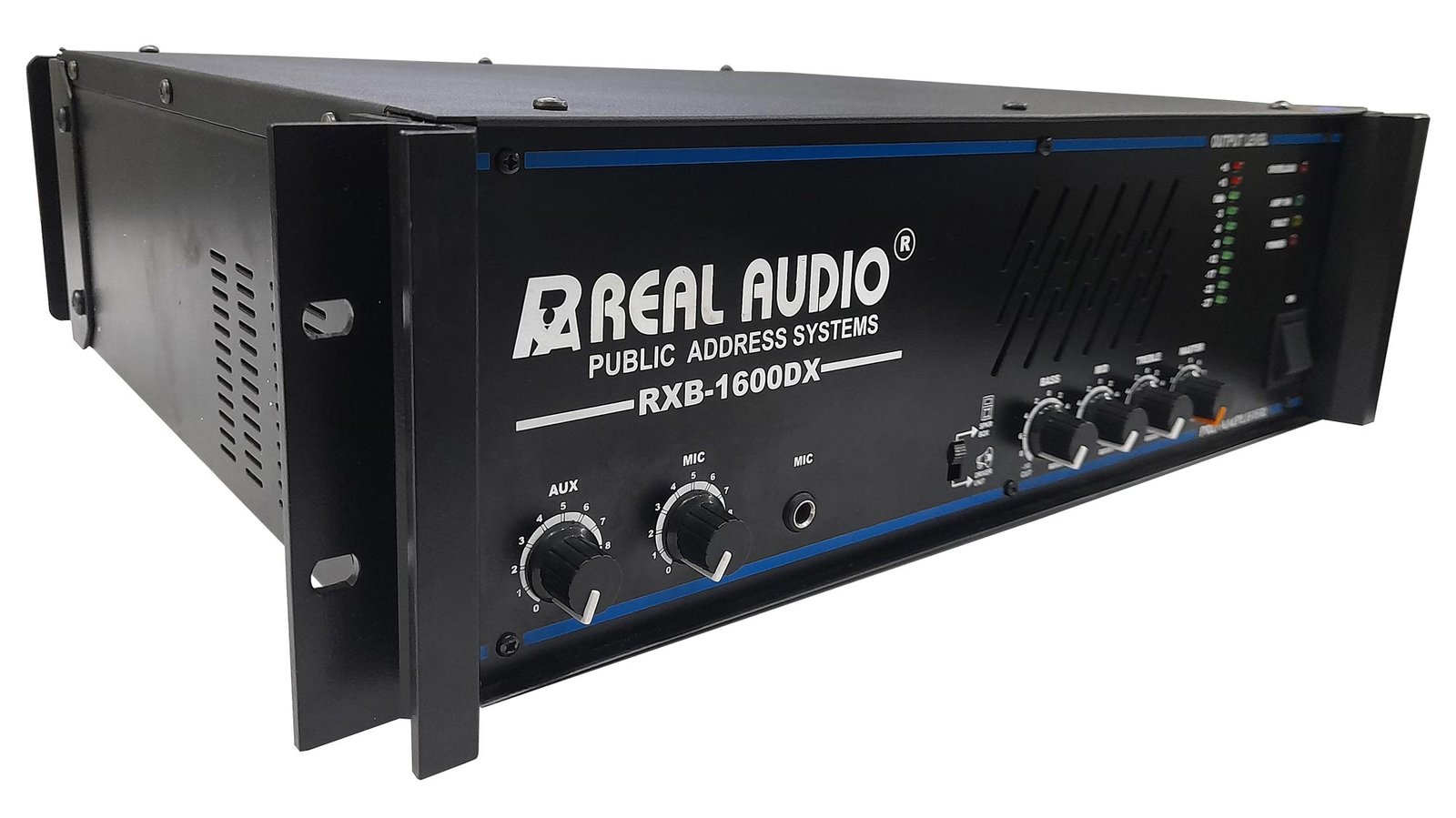

RXB-1600 DX (1600Watt) AB Class DJ & PA Power Amplifier
RealAudio – RXB-1600 Dx is a High-performance Class AB Dj & Pa Power Amplifier Designed to Deliver Exceptional Sound Quality, Powerful Output, and Reliable Operation for Demanding Audio Applications. Ideal for Dj Setups, Public Address Systems, Religious Venues, Schools, Auditoriums, and Outdoor Events, The RXB-1600 DX Ensures Crystal-Clear Sound With Strong Bass Response and Excellent Vocal Clarity.
Technical Specifications
Model: RXB-1600 DX
Power Output: 2000W Max, 1600W RMS @ 10% THD
Input Channels
- 1 × Mic: 0.8mV / 4.7kΩ
- 1 × Aux: 100mV / 470kΩ
- 1 × Line: 1V / 50kΩ
Frequency Response
30Hz – 18kHz ±3dB
Tone Controls
- Bass: +10dB @ 100Hz
- Mid: +10dB @ 1kHz
- Treble: +10dB @ 10kHz
Outputs
- Preamp Output: 200mV / 600Ω
- Line Output: 1V / 1kΩ
Output Regulation
Less than 2dB from No Load to Full Load @ 1kHz

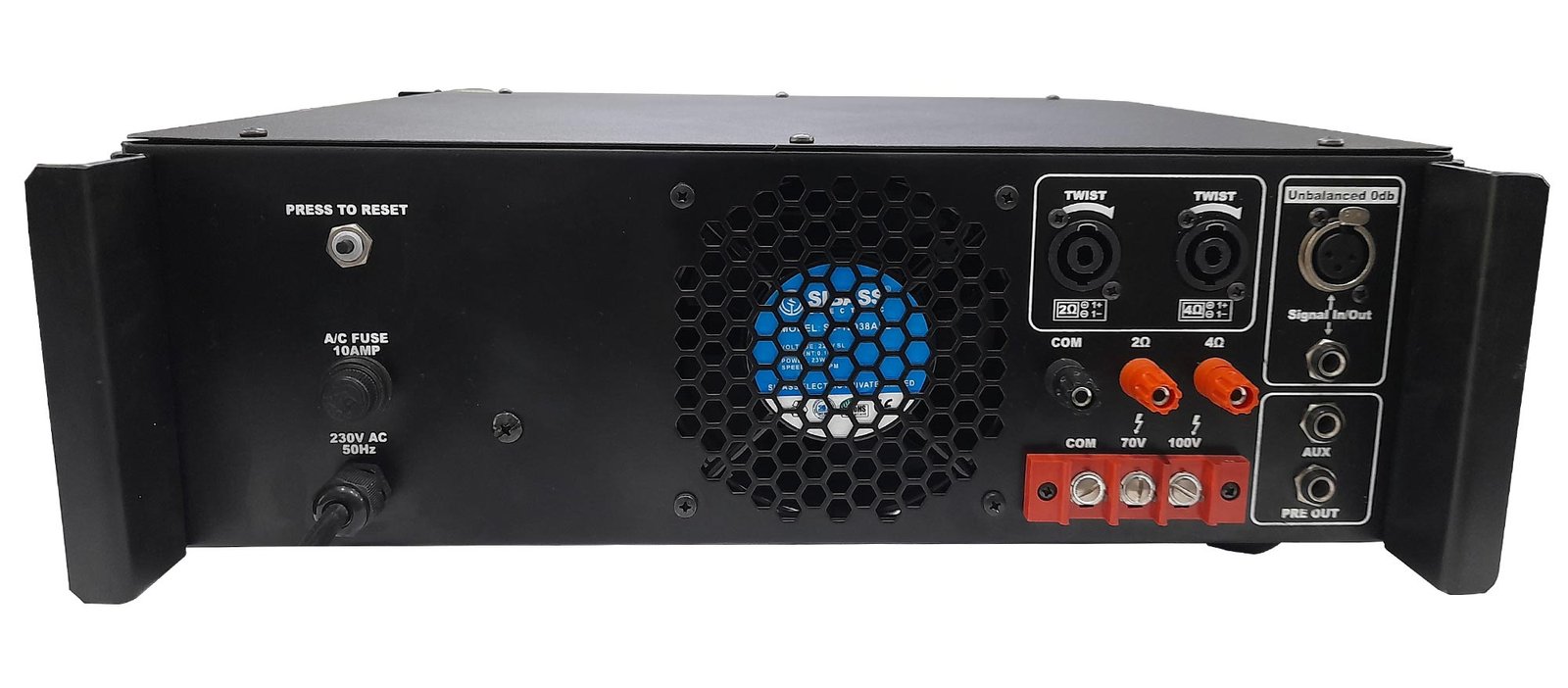

Speaker Outputs
- 2Ω Direct Output
- 4Ω Direct Output
- 70V Line Output
- 100V Line Output
- Compatible with LMT Speaker Systems
Power Supply
AC 230V
Cooling System
AC Fan Cooling
Applications
🔊 DJ Sound Systems
🎤 Public Address Systems
⛪ Religious Places & Community Halls
🏫 Schools & Educational Institutions
🏢 Commercial Audio Installations
🎪 Outdoor Events & Functions
🎵 Live Music & Stage Applications
