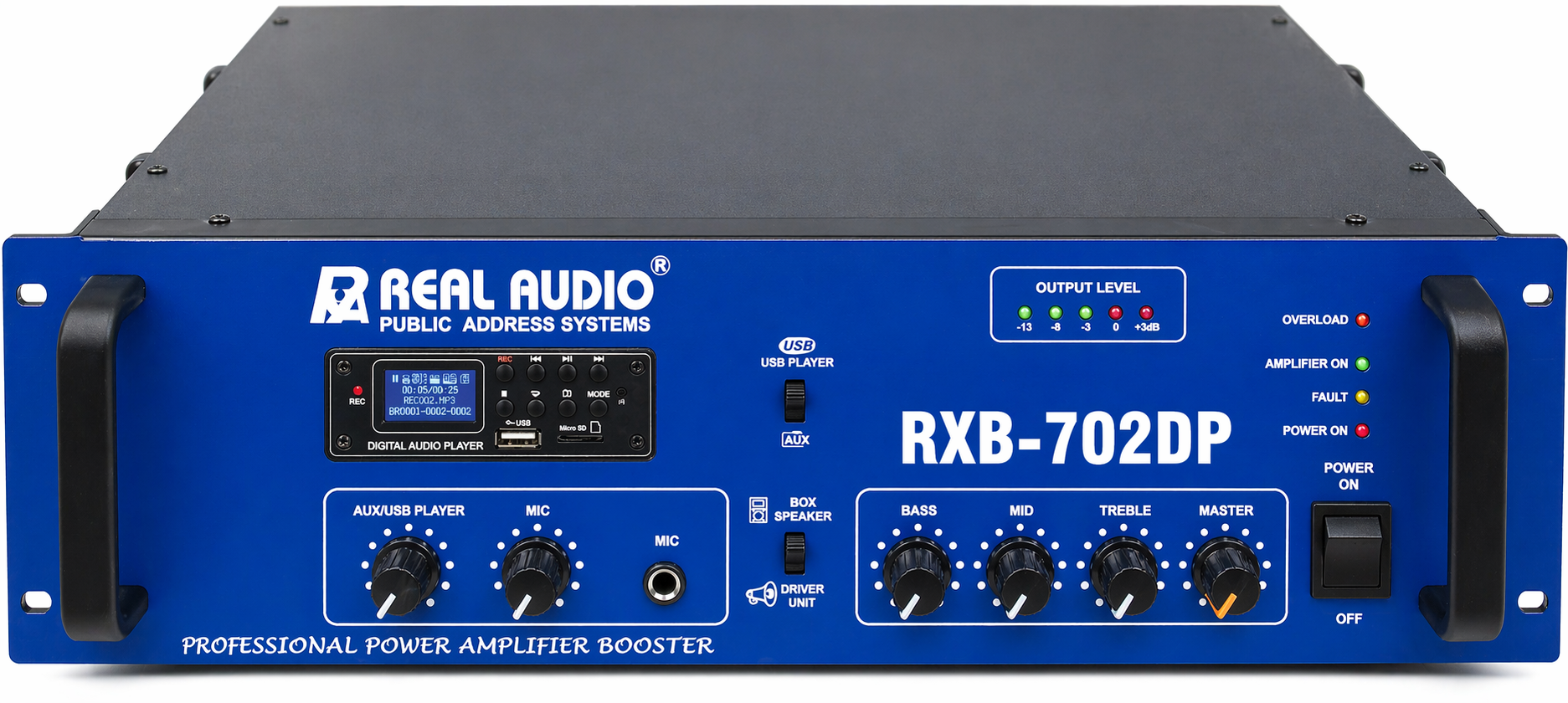

RXB-702 DP 700 Watt P.A. Power Amplifier + Digital Player
RXB-702 DP 700 Watt P.A. Power Amplifier + Digital Player is a Powerful and Dependable Public Address Power Amplifier Designed to Meet the Demands of Modern Sound Reinforcement Applications. Combining Robust Amplification With a Built-in Digital Player, This Amplifier Delivers Clear Speech Reproduction, Dynamic Music Performance, and Reliable Operation for Educational Institutions, Religious Venues, Commercial Facilities, Factories, and Community Halls. Engineered for Continuous Use, the RXB-702 Dp Offers Excellent Audio Quality, Flexible Connectivity, and Support for Both Low-impedance and 70v/100v LINE Speaker Systems, Making It an Ideal Choice for Professional Pa Installations.
Technical Specifications
Power Output
- 900W Maximum Power
- 700W RMS @ 10% THD
Input Channels
- 1 × Mic Input: 0.8mV / 4.7kΩ
- 1 × Aux Input: 100mV / 470kΩ
- 1 × Line Input: 1V / 50kΩ
Frequency Response
- 50Hz – 15kHz (±3dB)
Tone Controls
- Bass: ±10dB @ 100Hz
- Mid: ±10dB @ 1kHz
- Treble: ±10dB @ 10kHz
Output
- Line Output: 1V / 1kΩ
Output Regulation
- Less than 2dB variation from no-load to full-load at 1kHz
Speaker Outputs
- 2Ω Direct Output
- 4Ω Direct Output
- 70V Line Output
- 100V Line Output
- Compatible with Line Matching Transformers (LMT) for multi-zone speaker installations
Cooling System
- High-Efficiency AC Fan Cooling
Power Supply
- AC 230V
Ideal Applications
Educational Institutions
Ideal for schools, colleges, universities, and training centers requiring dependable public address systems.
Religious Venues
Perfect for temples, mosques, churches, gurudwaras, and prayer halls where clear voice projection is essential.
Industrial & Commercial Facilities
Suitable for factories, warehouses, production units, shopping complexes, and office buildings with distributed audio requirements.
