MODEL-CA-18 Dual Channel Professional Power Amplifier

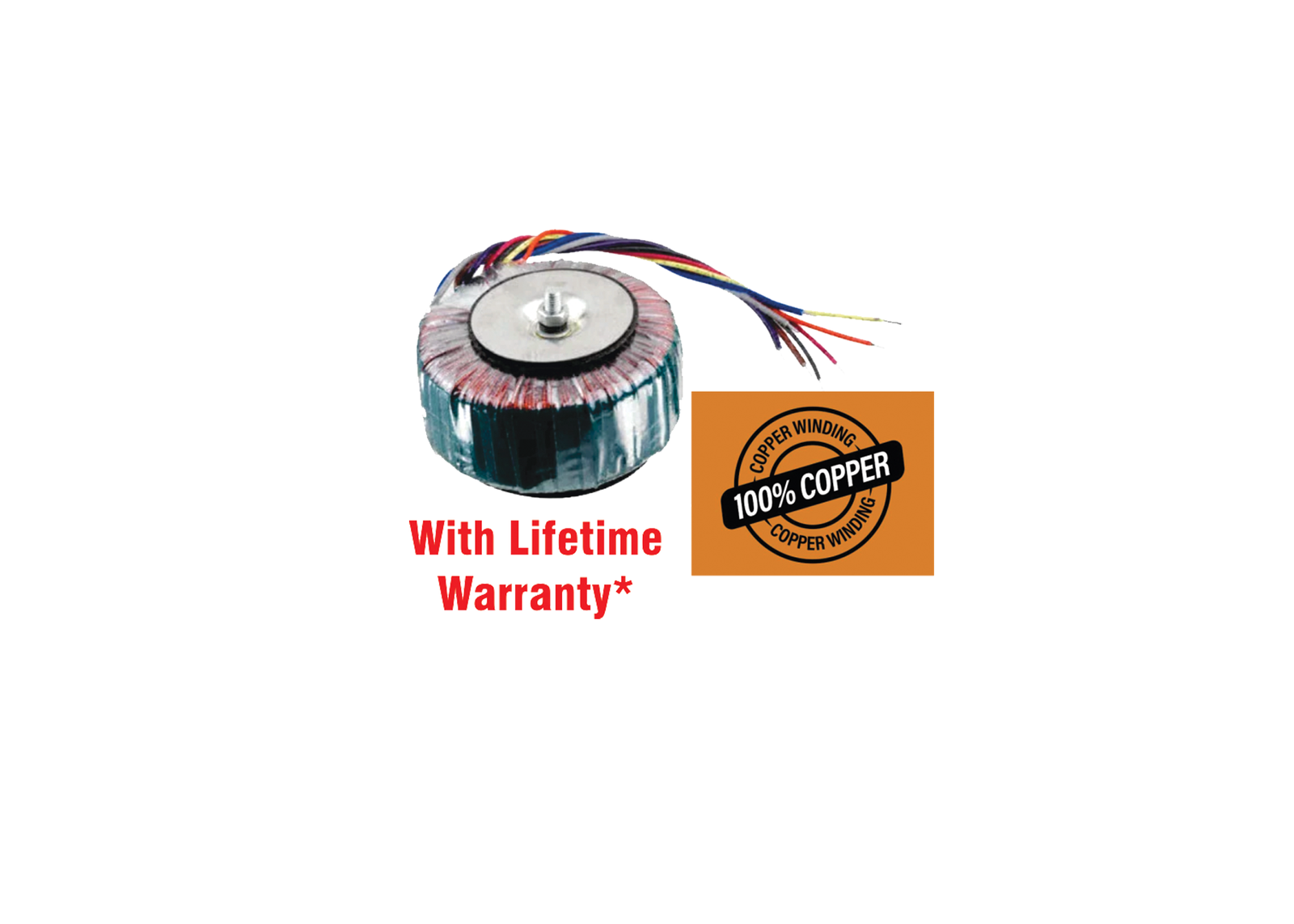

The Ca-18 is a High-performance Class AB Power Amplifier Built for Professional Sound Reinforcement Applications. Featuring a High-current Toroidal Transformer, Dual-channel Crossover, Advanced Protection Systems, and Efficient Cooling, It Delivers Powerful Bass, Exceptional Clarity, and Reliable Operation for Djs, Concerts, Clubs, and Large-scale Pa Systems.
Technical Specifications
Output Power @ 8Ω Stereo/Mono: 2 × 1000W
Output Power @ 4Ω Stereo/Mono: 2 × 1500W
Output Power @ 2Ω Stereo/Mono: 2 × 2000W
Output Circuitry: Class AB
Frequency Response: 20Hz – 20kHz ±1dB
Input Sensitivity: 0.707V (0dBm)
Input Impedance (Balanced/Unbalanced): 20kΩ / 10kΩ
THD+N: ≤ 1%
Signal-to-Noise Ratio: >102dB
Damping Factor: >600
Crossover: Dual Channel Crossover
Cooling System: Front-to-back cooling via 2 variable-speed fans
Protection Features: Soft Start, Short Circuit Protection, Under-Impedance Protection, Over-Current Protection, Clip Limiter, and Thermal Protection
Rack Space: 3U
Applications
✔ Professional DJ Sound Systems
✔ Live Concerts & Stage Shows
✔ Clubs & Discotheques
✔ Marriage & Event Sound Setups
✔ Line Array Speaker Systems
✔ Outdoor Sound Reinforcement
✔ Auditoriums & PA Applications
✔ Rental Sound Systems
✔ High-Power Subwoofer Applications
CA-18 – Professional Power, Reliable Performance.
Designed to Deliver Clean, Powerful, and Dependable Audio Performance for Demanding Professional Sound Environments.
