CA-30 Class AB Dual Channel Power Amplifier

Brand: ,

MODEL-CA-30

The Nutron Plus CA-30 Class AB Power Amplifier is engineered to deliver exceptional power, superior sound quality, and unmatched reliability for professional sound reinforcement systems. Designed for DJs, live concerts, auditoriums, rental companies, and large-scale P.A. applications, the CA-30 combines robust Class AB technology with advanced protection features to ensure consistent performance under demanding conditions.

Key Features

✔ Professional DJ Sound Systems
✔ Live Concert & Stage Shows
✔ Clubs & Discotheques
✔ Marriage & Event Sound Setup
✔ Line Array Speaker Systems
✔ Outdoor Sound Reinforcement
✔ Auditorium & PA Applications
✔ Bass-Heavy Professional Audio Systems
✔ Rental Sound Applications
✔ High-Power Subwoofer Driving Systems
✔ 2 Channel high-output power Amplifier.

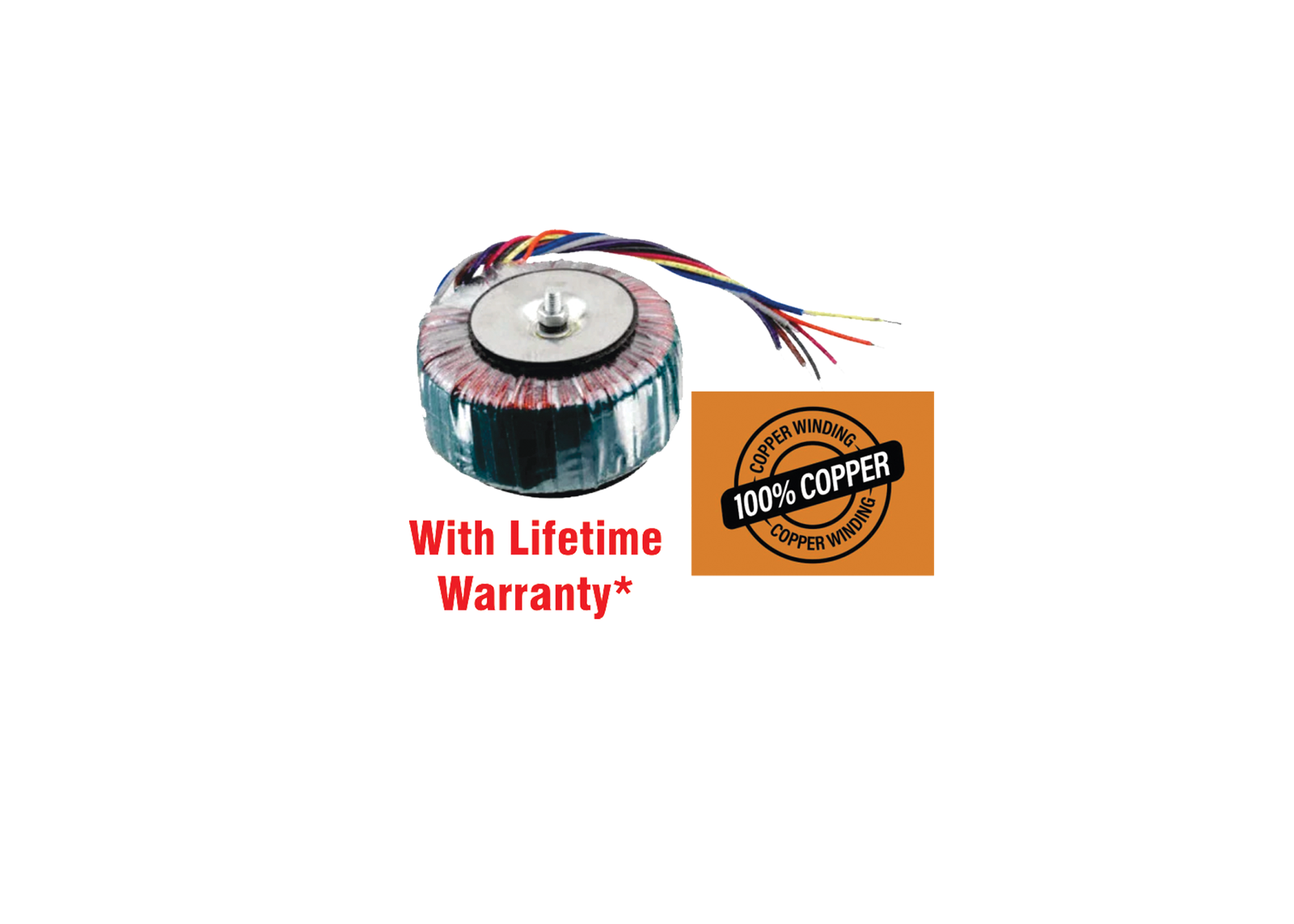

✔ Powerful, High current copper ring Toroidial transformer provides a stable stream of power.

₹59,000.00

Add to wishlist
0 People watching this product now!

SPECIFICATIONS

Nutron+ CA-30 Class AB Dual Channel Power Amplifier

The Nutron Plus CA-30 is a professional-grade Class AB Dual Channel Power Amplifier designed to deliver outstanding performance, reliability, and sound clarity for demanding audio applications. Engineered for DJs, live sound professionals, auditoriums, rental companies, and large P.A. systems, the CA-30 provides powerful output, excellent speaker control, and dependable operation even under continuous heavy-duty use.

Technical Specifications

Model: CA-30

Output Power

  • 8Ω Stereo/Mono: 2 × 1500W
  • 4Ω Stereo/Mono: 2 × 2200W
  • 2Ω Stereo/Mono: 2 × 3000W

Performance

  • Output Circuitry: Class AB
  • Frequency Response: 20Hz – 20kHz ±1dB
  • Input Sensitivity: 0.707V (0dBm)
  • Input Impedance (Balanced/Unbalanced): 20kΩ / 10kΩ
  • THD+N: ≤ 1%
  • Signal-to-Noise Ratio: >102dB
  • Damping Factor: >600

System Features

  • Dual Channel Crossover
  • Front-to-Back Cooling System
  • 4 Variable-Speed Cooling Fans

Protection Features

  • Soft Start-Up Protection
  • Short Circuit Protection
  • Under-Impedance Protection
  • Over-Current Protection
  • Clip Limiter Protection
  • Thermal Protection

Physical Specifications

  • Rack Space: 3U

Nutron Plus CA-30

Built for Power. Designed for Reliability. Engineered for Professional Sound.
