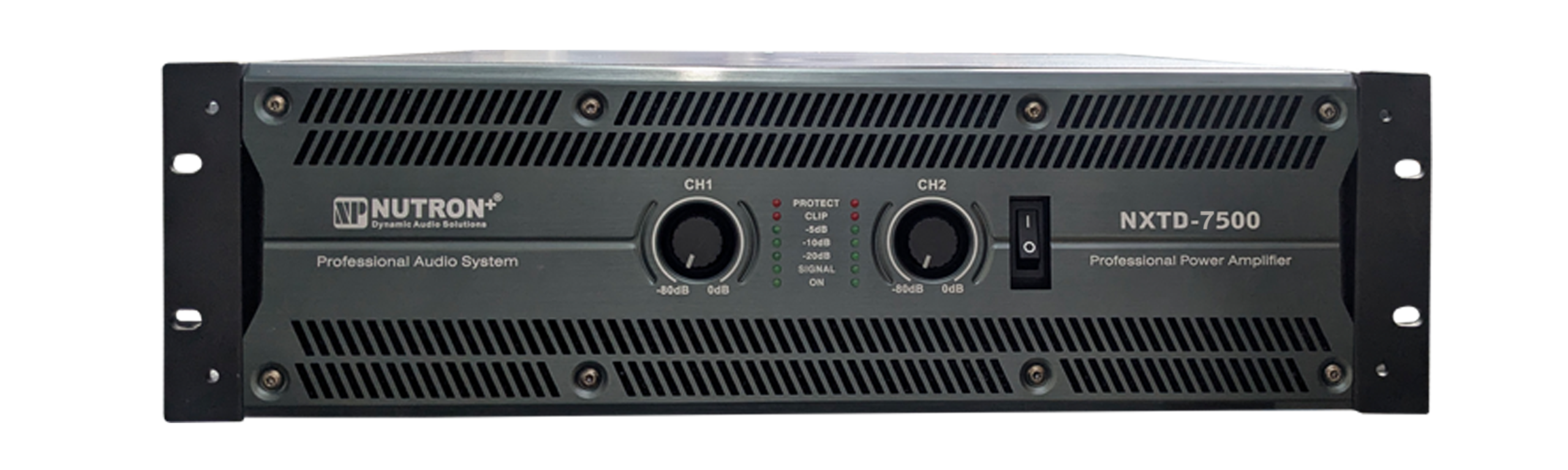

NXTD-7500 Class TD Dual Channel Power Amplifier – NUTRON+
NXTD-7500 Class TD Dual Channel Power Amplifier – NUTRON+ Series is Engineered to Deliver Exceptional Power, Efficiency, and Audio Clarity for Professional Sound Reinforcement Applications. Designed for Djs, Live Events, Auditoriums, Rental Companies, and Large-scale P.A Systems, It Combines Robust Output Performance With Reliable Protection and Cooling Systems.
Model NX TD-7500
NUTRON+ Series | Class TD Dual Channel Power Amplifier
Output Power (8Ω Stereo/Mono): 2 × 1900W
Output Power (4Ω Stereo/Mono): 2 × 2600W
Output Power (2Ω Stereo/Mono): 2 × 3800W
Output Power (8Ω Bridged): 5200W
Output Power (4Ω Bridged): 7600W
Output Circuitry: Class TD
Frequency Response: 20Hz – 20KHz ±0/-0.5dB
Input Sensitivity: 0.775V / 1.0V / 1.4V
Input Impedance (Balanced/Unbalanced): 10KΩ Balanced to Ground
THD+N: ≤ 1%
Signal-to-Noise Ratio: >80dB
Damping Factor: >1500
Slew Rate: 15V/µs
Cooling System: Front-to-Back Airflow via 2 Variable-Speed Fans
Protection: Soft Startup, Short Circuit Protection, Under-Impedance Protection, Over-Current Protection, Clip Limiter & Thermal Protection
Rack Space: 3U
Key Features
✔ Advanced Class TD Technology
✔ High-Efficiency Power Output
✔ Damping Factor >1500 for Exceptional Speaker Control
✔ Powerful 7600W Bridged Output @ 4Ω
✔ Intelligent Dual-Fan Cooling System
✔ Comprehensive Protection Circuitry
✔ Ideal for Touring, DJ, Live Sound & Professional PA Systems
NX TD-7500 – Extreme Power. Superior Control. Professional Performance.
