NX TD-8500 Dual Channel Power Amplifier

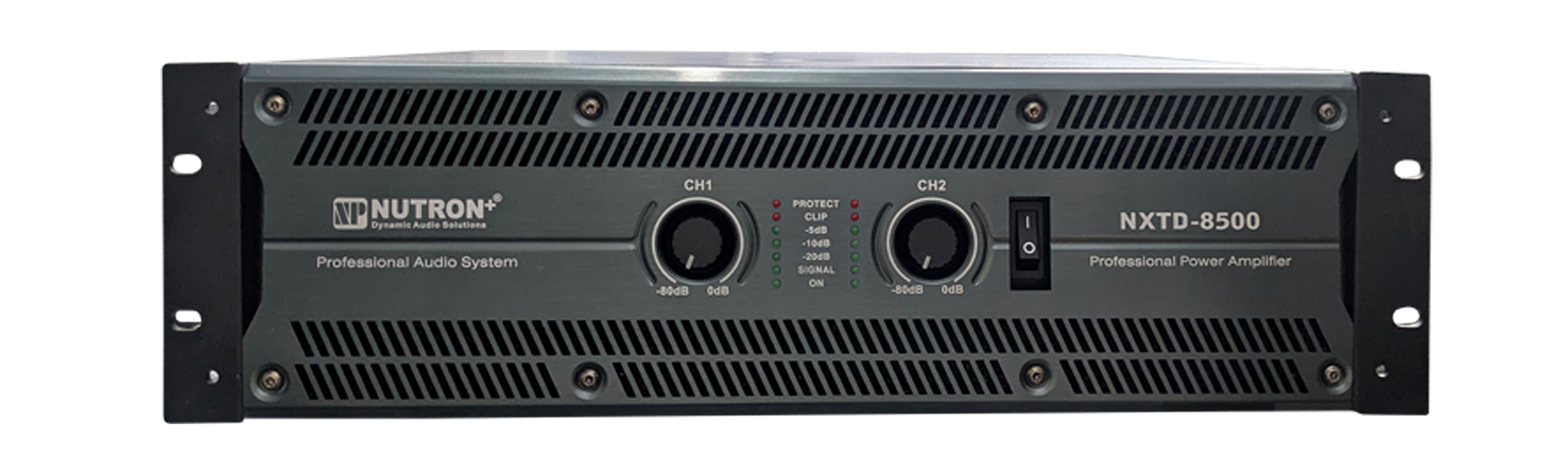

Nutron+ NX TD-8500 Class TD Dual Channel Power Amplifier

Nutron+ NX TD-8500 Class TD Dual Channel Power Amplifier is Engineered for Professional Audio Applications, Delivering Exceptional Power, Efficiency, and Reliability. Designed for Concerts, Auditoriums, DJ Setups, Houses of Worship, and Large-Scale Sound Reinforcement, The NX TD-8500 Provides Deep Bass, Crystal-clear highs, and consistent performance even under demanding conditions.

Technical Specifications

Output Power

• 8Ω Stereo: 2 × 2200W
• 4Ω Stereo: 2 × 3400W
• 2Ω Stereo: 2 × 4400W
• 8Ω Bridged: 6800W
• 4Ω Bridged: 8800W

Amplifier Class

• Class TD

Frequency Response

• 20Hz – 20kHz (±0/-0.5dB)

Input Sensitivity

• 0.775V / 1.0V / 1.4V

Input Impedance

• 10kΩ Balanced / Unbalanced

THD+N

• ≤ 1%

Signal-to-Noise Ratio

80dB

Damping Factor

1500

Slew Rate

• 15V/µs

Cooling System

• Front-to-Back Airflow
• Dual Variable-Speed Fans

Protection Features

• Soft Start
• Short Circuit Protection
• Under-Impedance Protection
• Over-Current Protection
• Clip Limiter
• Thermal Protection

Rack Size

• 3U

• Key Features

  ✔ High-Efficiency Class TD Technology
  ✔ Powerful Output for Professional Applications
  ✔ Deep Bass and Crystal-Clear Sound Reproduction
  ✔ High Damping Factor for Superior Speaker Control
  ✔ Advanced Protection Circuitry
  ✔ Intelligent Cooling System
  ✔ Rugged 3U Professional Rack Design
  ✔ Ideal for Concerts, DJ Systems, Auditoriums & Large Venues

  Nutron+ NX TD-8500 — Professional Power. Maximum Performance.
