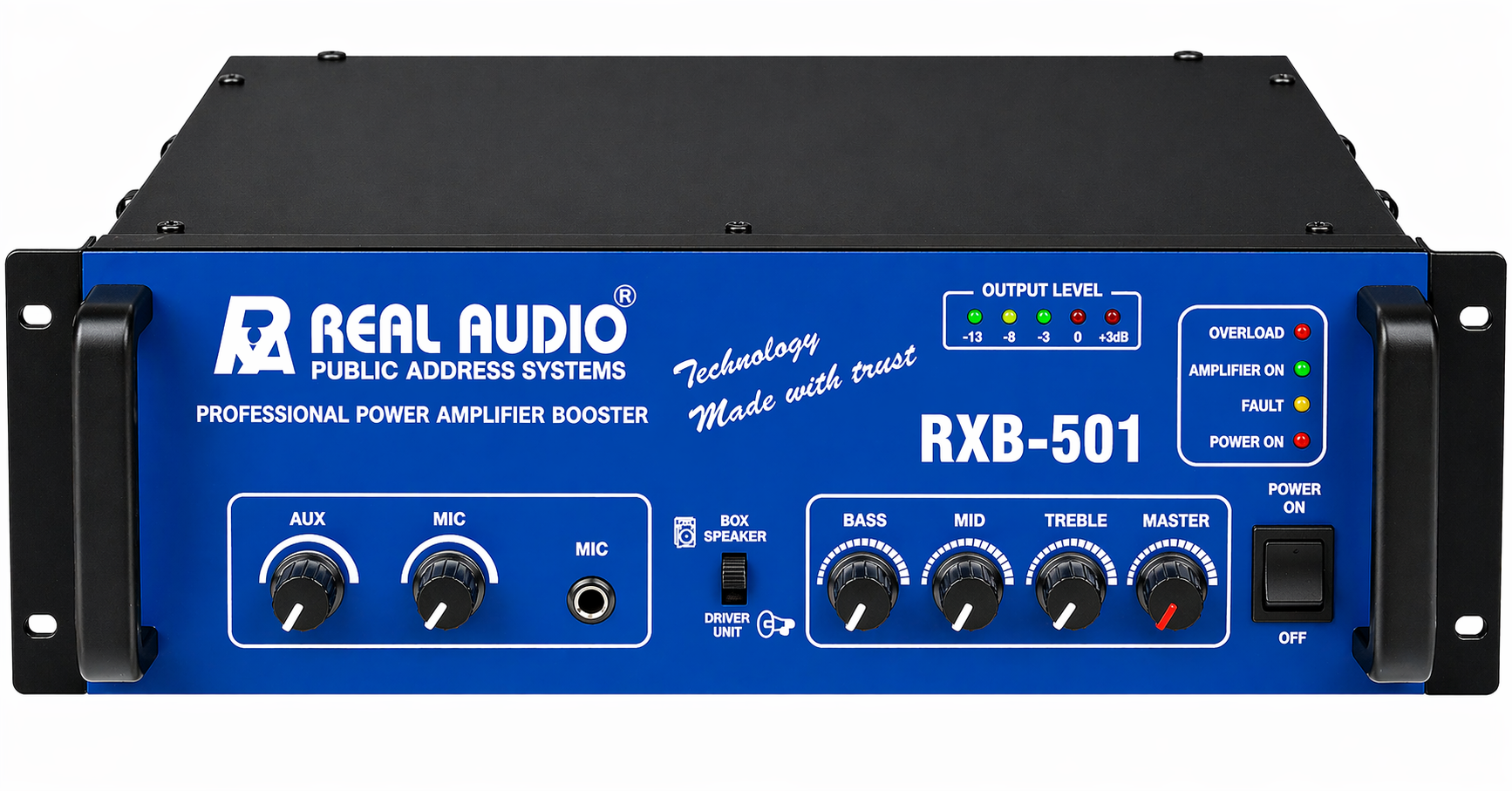

RXB-501 (500Watt) AB Class DJ & PA Power Amplifier

Brand:

Model-RXB-501

Compact Power. Clear Sound. Reliable Performance.

RXB-501 is a Robust and Dependable 500w Rms Class Ab Power Amplifier, Designed to Deliver Clean, Powerful Audio for Dj Setups, Public Address Systems, Religious Venues, Schools, and Commercial Sound Installations. Built With Proven Class Ab Technology, the RXB-501 Offers Excellent Sound Quality, Strong Bass Response, and Long-term Reliability.



Key Features

✔ 500W RMS High Power Output

✔ Class AB Amplifier Design for warm and natural sound reproduction

✔ Crystal Clear Vocal & Music Performance

✔ Mic, Aux & Line Inputs for versatile connectivity

✔ Bass, Mid & Treble Tone Controls

✔ 2Ω & 4Ω Speaker Output Compatibility

✔ 70V & 100V Line Outputs for PA and LMT speaker systems

✔ Preamp & Line Outputs for system expansion

✔ Stable Performance Under Continuous Operation

✔ Efficient Fan Cooling System

✔ Heavy-Duty Construction for Professional Use

₹21,385.00

Add to wishlist
0 People watching this product now!

SPECIFICATIONS

RXB-501 (500Watt) AB Class DJ & PA Power Amplifier



RXB-501 is a Robust and Dependable 500w Rms Class AB DJ & PA Power Amplifier Designed to Deliver Clean, Powerful Audio for Dj Setups, Public Address Systems, Religious Venues, Schools, and Commercial Sound Installations. Built With Proven Class AB Technology, The RXB-501 Offers Excellent Sound Quality, Strong Bass Response, and Long-Term Reliability.



Technical Specifications

Power Output: 700W Max, 500W RMS @ 10% THD

Input Channels

  • 1 × Mic: 0.8mV / 4.7kΩ
  • 1 × Aux: 100mV / 470kΩ
  • 1 × Line: 1V / 50kΩ

Frequency Response

50Hz – 15kHz ±3dB

Tone Controls

  • Bass: +10dB @ 100Hz
  • Mid: +10dB @ 1kHz
  • Treble: +10dB @ 10kHz

Output

  • Line Output: 1V / 1kΩ

Output Regulation

Less than 2dB from No Load to Full Load @ 1kHz

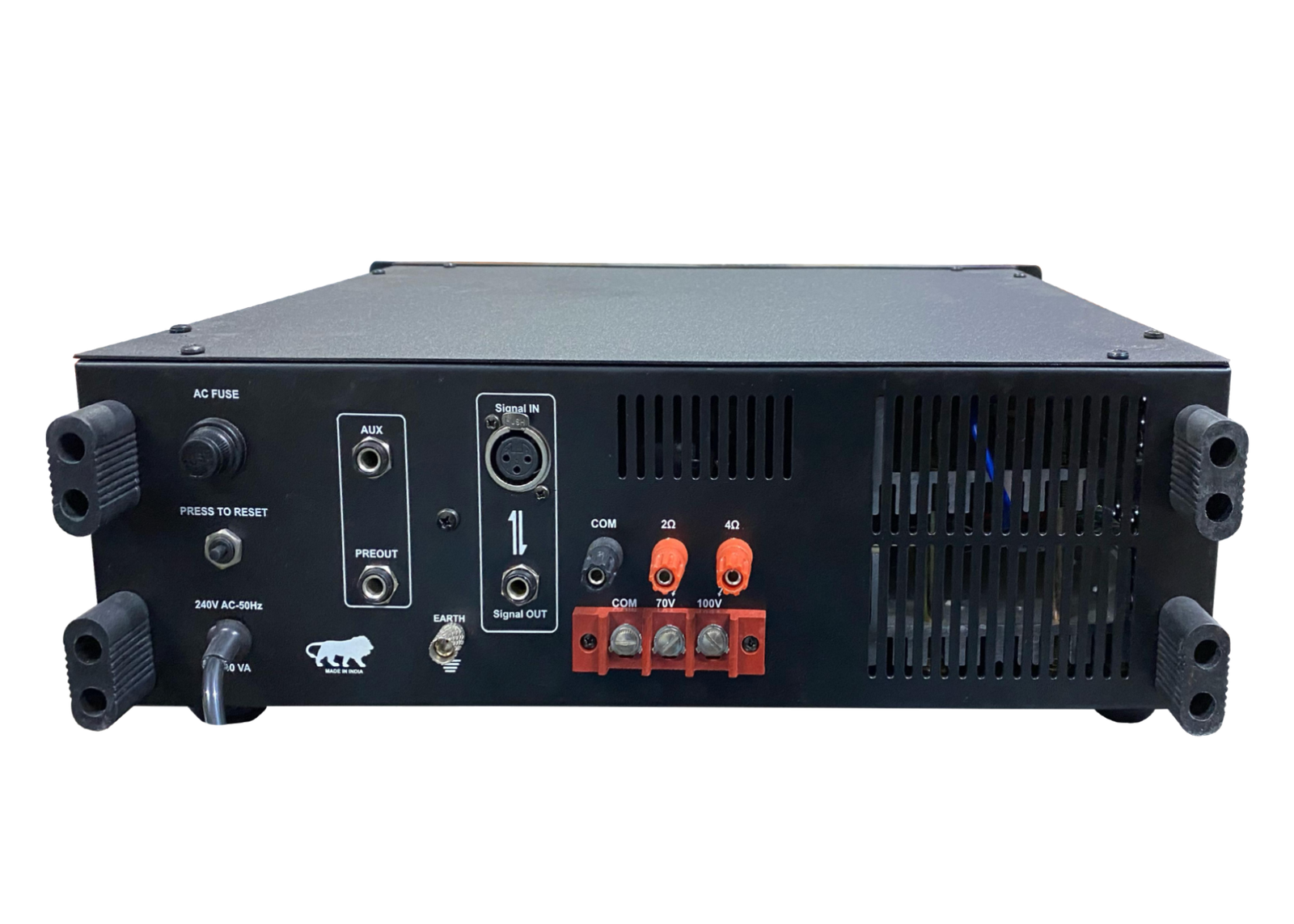

Speaker Outputs

  • 2Ω Direct Output
  • 4Ω Direct Output
  • 70V Line Output
  • 100V Line Output
  • Compatible with LMT Speaker Systems

Power Supply

AC 230V

Cooling System

AC Fan Cooling

Applications

🔊 DJ Sound Systems
🎤 Public Address Systems
⛪ Religious Places & Community Halls
🏫 Schools & Educational Institutions
🏢 Commercial Audio Installations
🎪 Outdoor Events & Functions
🎵 Live Music & Stage Applications

RealAudio – Compact Power. Clear Sound. Reliable Performance.
