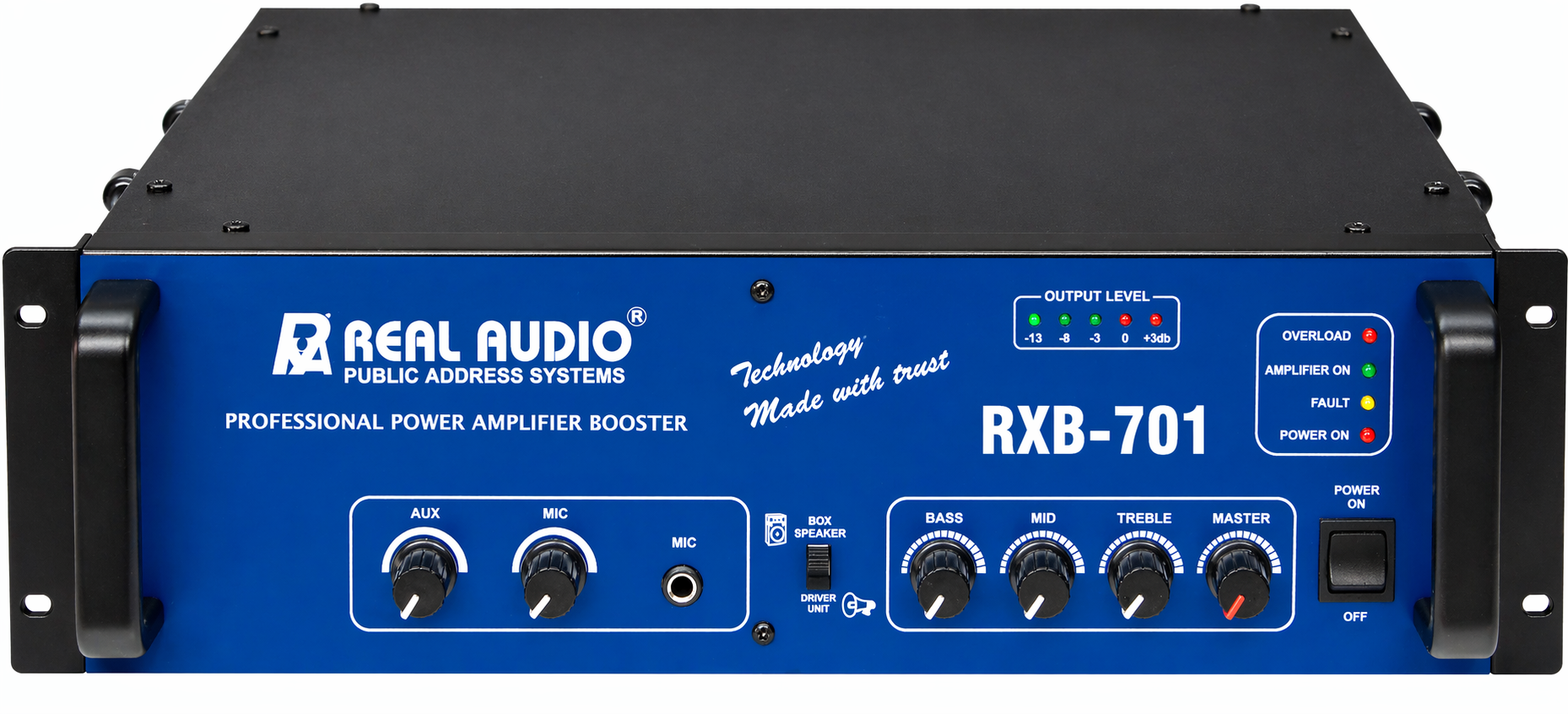

RXB-701 (700W) AB Class DJ & PA Power Amplifier
RXB-701 is a High-Performance Class AB Dj & Pa Power Amplifier Engineered to Deliver Powerful Sound, Excellent Vocal Clarity, and Reliable Operation for a Wide Range of Audio Applications. Designed for Djs, Public Address Systems, Religious Venues, Schools, Community Halls, and Commercial Installations, the RXB-701 Offers The Perfect Balance of Power, Sound Quality, and Durability.
Technical Specifications
Power Output: 900W Max, 700W RMS @ 10% THD
Input Channels
- 1 × Mic: 0.8mV / 4.7kΩ
- 1 × Aux: 100mV / 470kΩ
- 1 × Line: 1V / 50kΩ
Frequency Response
50Hz – 15kHz ±3dB
Tone Controls
- Bass: +10dB @ 100Hz
- Mid: +10dB @ 1kHz
- Treble: +10dB @ 10kHz
Output
- Line Output: 1V / 1kΩ
Output Regulation
Less than 2dB from No Load to Full Load @ 1kHz
Speaker Outputs
- 2Ω Direct Output
- 4Ω Direct Output
- 70V Line Output
- 100V Line Output
- Compatible with LMT Speaker Systems
Power Supply
AC 230V
Cooling System
AC Fan Cooling
2 Year Manufacturing Warranty & Lifetime Transformer Warranty
Applications
🔊 DJ Sound Systems
🎤 Public Address Systems
⛪ Religious Places & Community Halls
🏫 Schools & Educational Institutions
🏢 Commercial Audio Installations
🎪 Outdoor Events & Functions
🎵 Live Music & Stage Applications
